HEATING & AIR CONDITIONING - COMPRESSOR

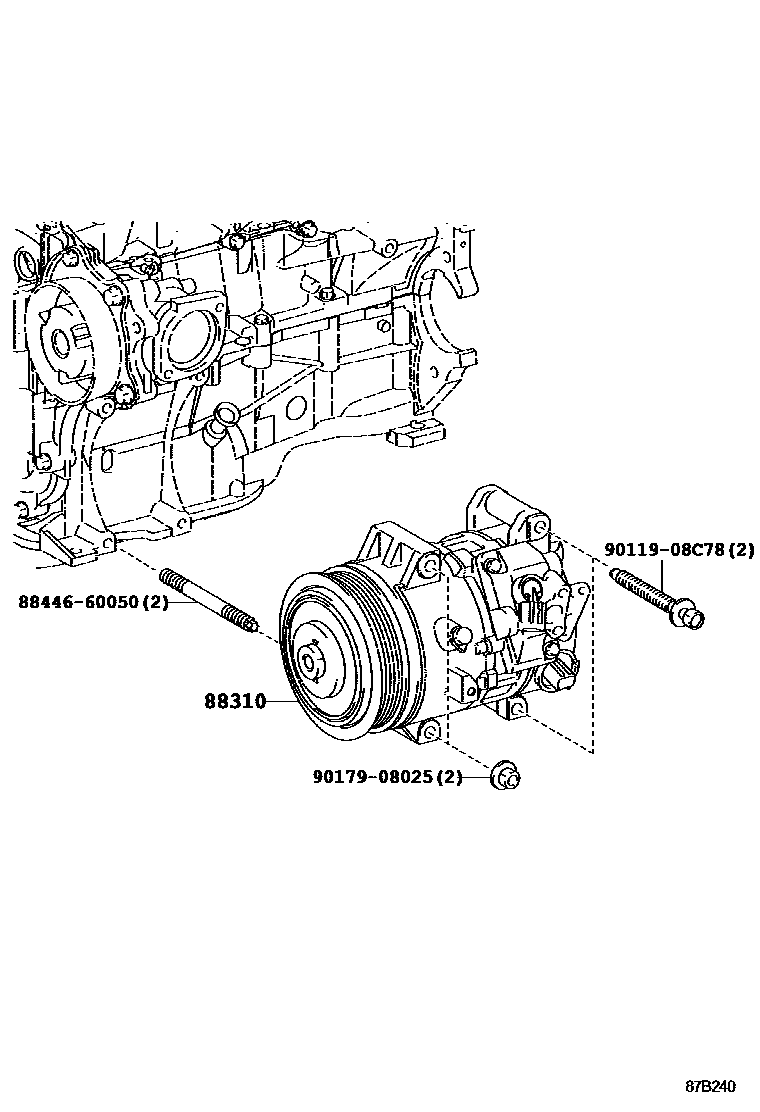

Parts diagram

88310COMPRESSOR ASSY, W/PULLEY

main88310-0M020i200911-201209

main88310-0M021i201210-201212

8844660050BOLT, IDLE PULLEY

main88446-60050

9011908C78

main90119-08C78

9017908025

main90179-08025

4 parts on this diagram · 1 diagram in section
