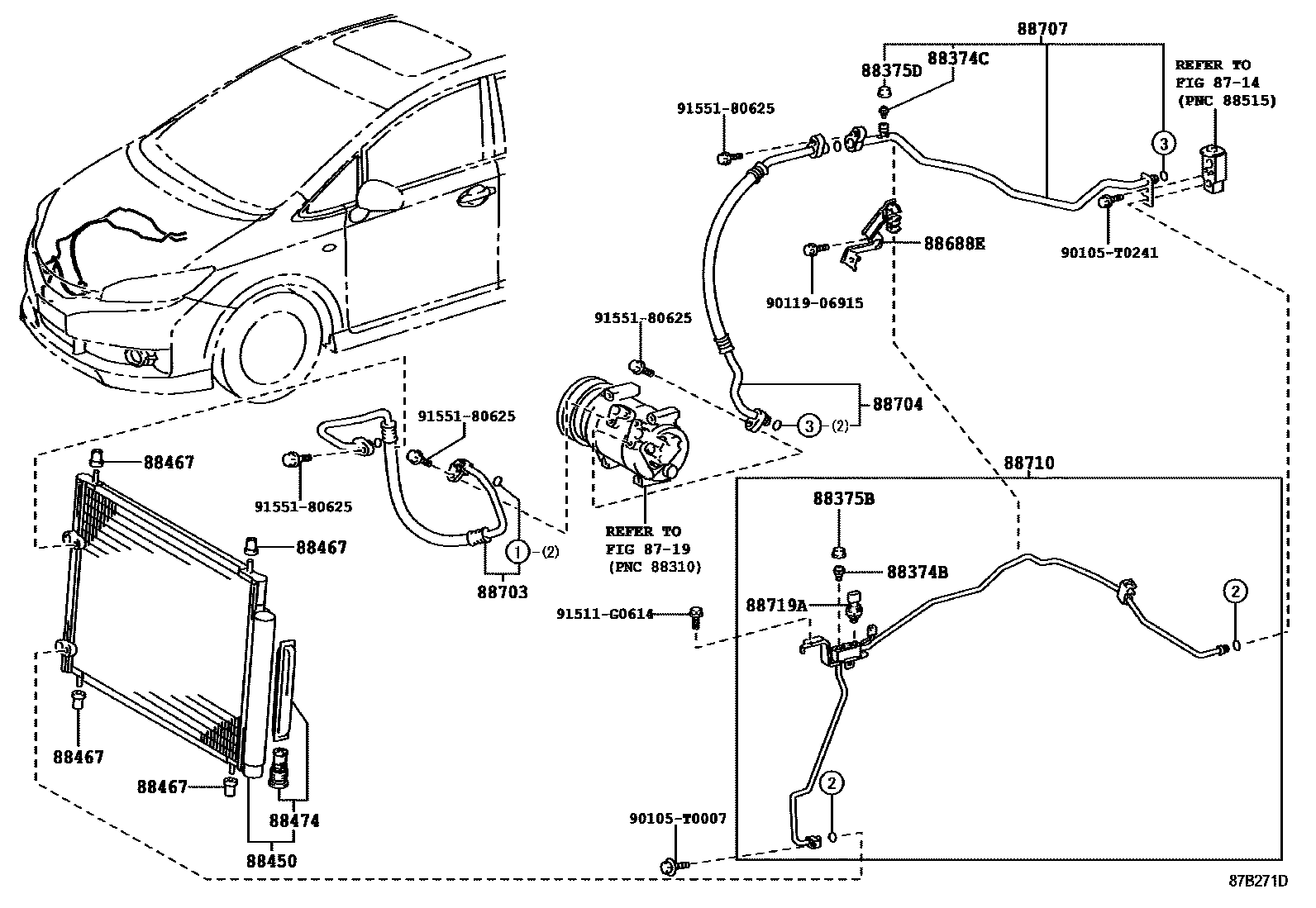

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1O-RING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iZGE21200911-201412

88374CVALVE, SERVICE, NO.2

main88374-30010iZGE21200911-201412

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iZGE21200911-201412

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iZGE21200911-201412

88450CONDENSER ASSY, W/RECEIVER

main88450-02360iZGE21200911-201606

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010iZGE21200911-201606

88474DRYER, COOLER

main88474-17010iZGE21200911-201412

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-0M060iZGE21200911-201005

main88688-0M061iZGE21201005-201412

88703HOSE SUB-ASSY, DISCHARGE

main88703-0M020iZGE21200911-201412

88704HOSE SUB-ASSY, SUCTION

main88704-0M020iZGE21200911-201412

88707PIPE SUB-ASSY, SUCTION

main88707-0M010iZGE21200911-201412

88710TUBE ASSY, AIR CONDITIONER

main88710-0M030iZGE21200911-201412

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iZGE21200911-201412

90105T0007

main90105-T0007

90105T0241

main90105-T0241

9011906915

main90119-06915

91511G0614

main91511-G0614

9155180625

main91551-80625

20 parts on this diagram · 2 diagrams in section
