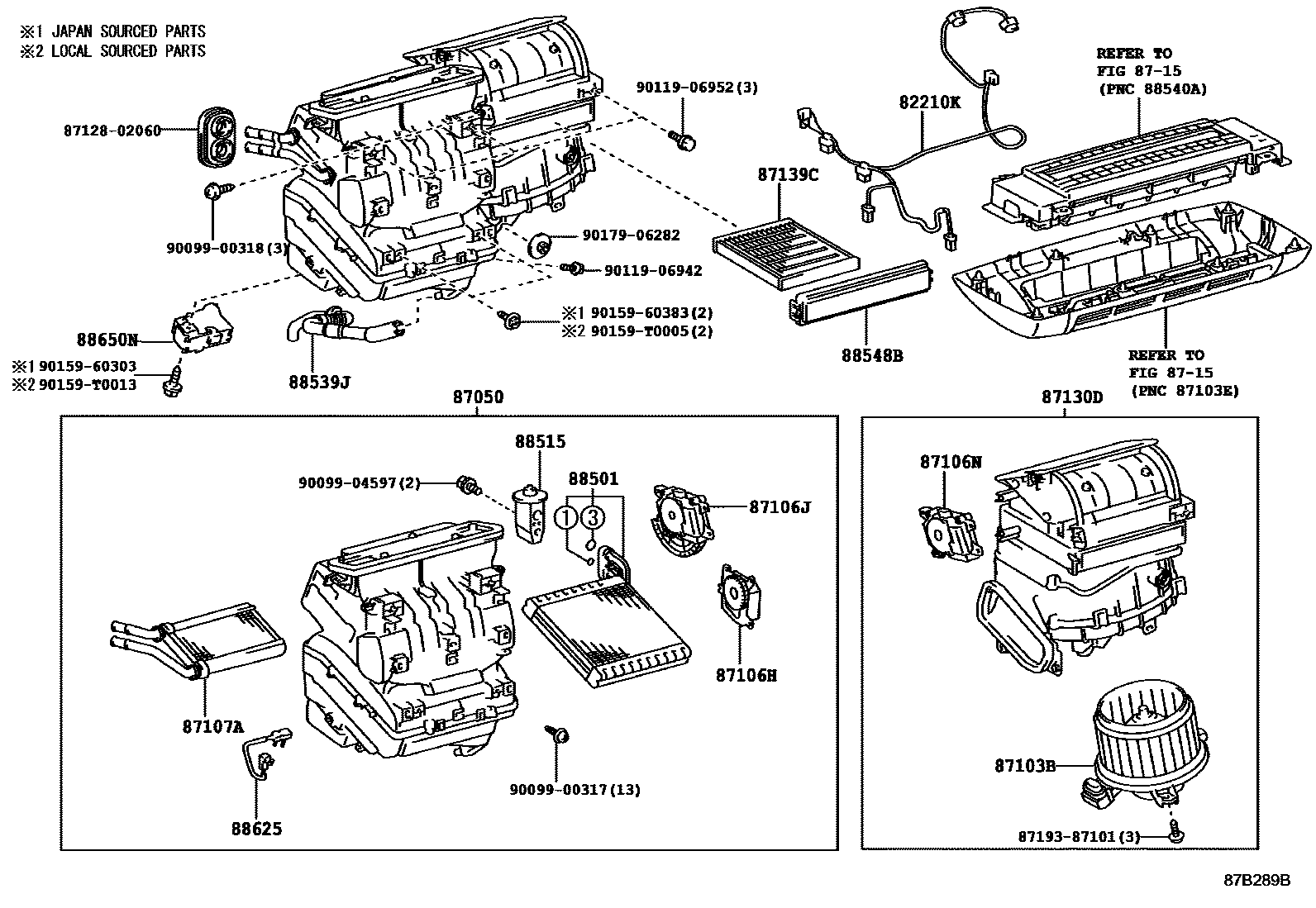

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1O-RING

82210KHARNESS ASSY, AIR CONDITIONER

main82212-02070iZGE21200911-201212

87050RADIATOR ASSY, AIR CONDITIONER

main87050-0M040iZGE21200911-201212

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-02350iZGE21200911-201010

main87103-02351iZGE21201011-201212

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-02450iZGE21200911-201208

main87106-02550iZGE21201209-201212

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-02460iZGE21200911-201208

main87106-02560iZGE21201209-201212

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-02480iZGE21200911-201208

main87106-02580iZGE21201209-201212

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-0K070iZGE21200911-201212

87130DBLOWER ASSY

main87130-02580iZGE21200911-201212

87139CFILTER, CLEAN AIR

main87139-06070iZGE21200911-201212

main87139-50100iZGE21..G201308-201412

*DPF

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-02320iZGE21..G201212-201412

main88501-0K190iZGE21200911-201107

main88501-0K191iZGE21201108-201208

88515VALVE, COOLER EXPANSION

main88515-68010iZGE21..E,J201212

88539JHOSE, DRAIN COOLER

main88539-02190iZGE21200911-201212

88548BCASE, AIR FILTER

main88548-0K030iZGE21200911-201212

88625THERMISTOR, COOLER, NO.1

main88620-02100iZGE21200911-201212

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-68140iZGE21200911-201212

main88650-68141iZGE21201212-201508

main88650-68142iZGE21201509

8712802060GROMMET, HEATER

main87128-02060

8719387101

main87193-87101

9009900317

main90099-00317

9009900318

main90099-00318

9009904597

main90099-04597

9011906942

main90119-06942

9011906952

main90119-06952

9015960303

main90159-60303

9015960383

main90159-60383

90159T0005

main90159-T0005

90159T0013

main90159-T0013

9017906282

main90179-06282

28 parts on this diagram · 2 diagrams in section
