AIR BAG

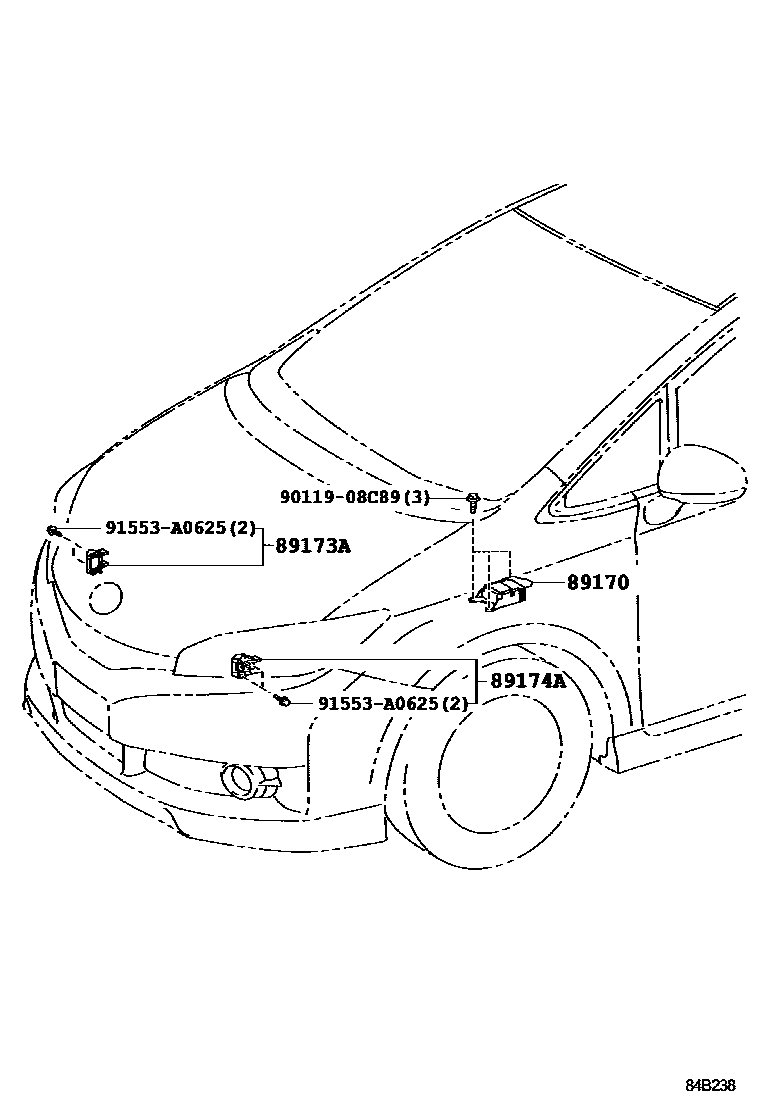

Parts diagram

89170SENSOR ASSY, AIRBAG

main89170-68040i200911-201212

main89170-68070i201212

89173ASENSOR, AIRBAG, FRONT RH

main89173-39375i200911-201212

main89173-59275i201212

89174ASENSOR, AIRBAG, FRONT LH

main89173-39375i200911-201212

main89173-59275i201212

9011908C89

main90119-08C89

91553A0625

main91553-A0625

5 parts on this diagram · 1 diagram in section
