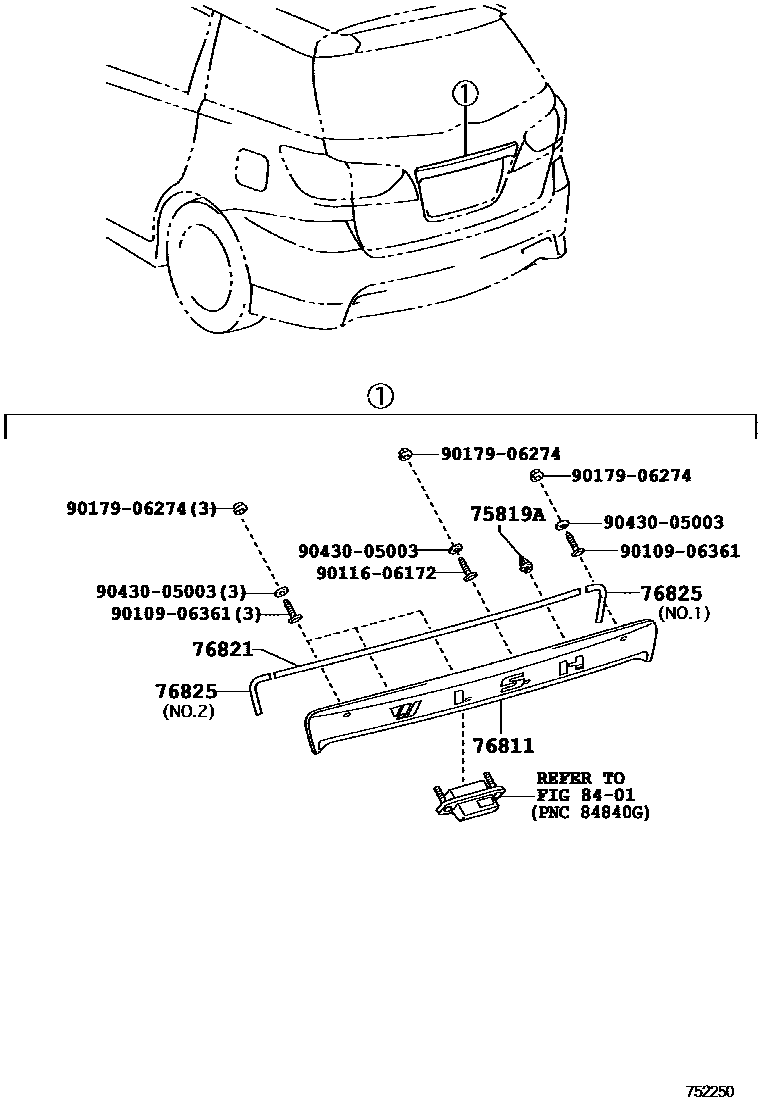

REAR MOULDING

0001 1 0002 1

75819ACLIP, BACK DOOR MOULDING

main75819-33010iZGE21200911-201212

76811GARNISH, BACK DOOR, OUTSIDE

main76811-0M040iZGE21..E,J200911-201212

main76811-0M060iZGE21..E,J201212

main76811-0M070iZGE21..G201212-201412

main76811-0M030supersedes 76811-0M040iZGE21..G200911-201112

2.0G-OPTION

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76821-0M020iZGE21200911-201212

main76821-0M030iZGE21201212

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-0M020iZGE21200911-201212

NO.1

main76835-0M020iZGE21200911-201212

NO.2

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010906361

main90109-06361

9011606172

main90116-06172

9017906274

main90179-06274

9043005003

main90430-05003

9 parts on this diagram · 2 diagrams in section
