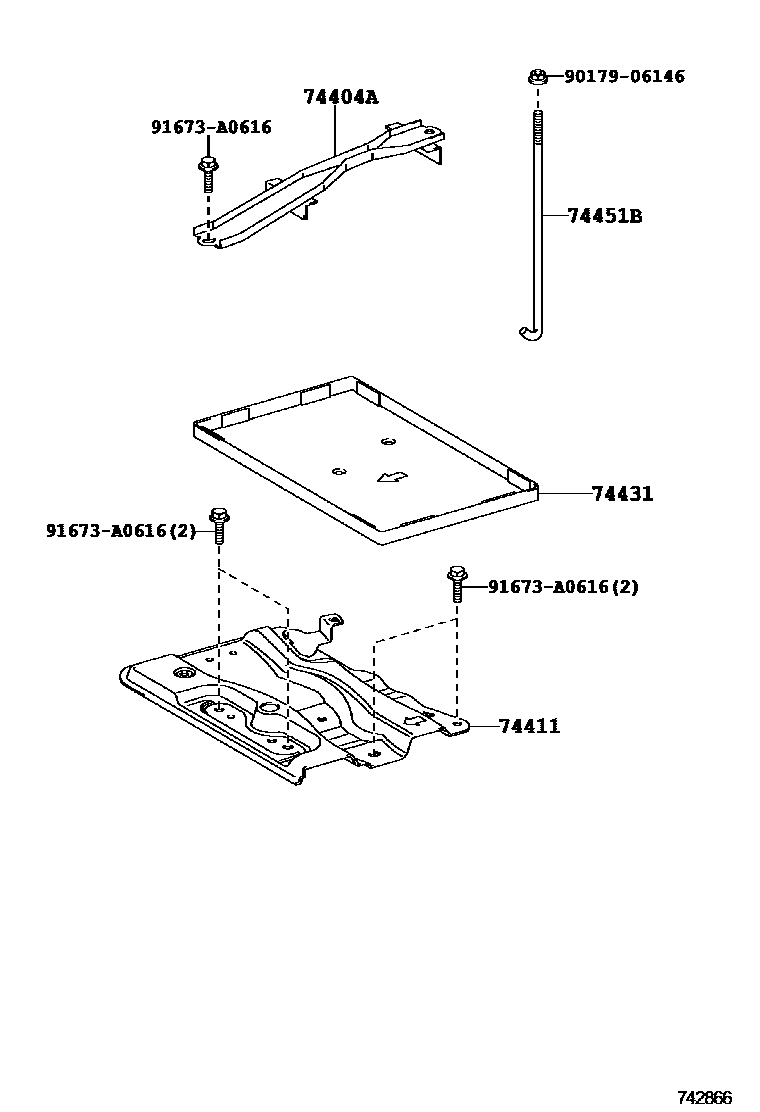

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-20640iZGE21200911-201212

74411CARRIER, BATTERY

main74410-0M010iZGE21200911-201212

74431TRAY, BATTERY

main74431-20130iZGE21200911-201212

74451BBOLT, BATTERY CLAMP

main74451-10060iZGE21200911-201210

main74451-10061iZGE21201506

sub74451-42030

main74451-58011iZGE21201211-201505

9017906146

main90179-06146

91673A0616

main91673-A0616

6 parts on this diagram · 1 diagram in section
