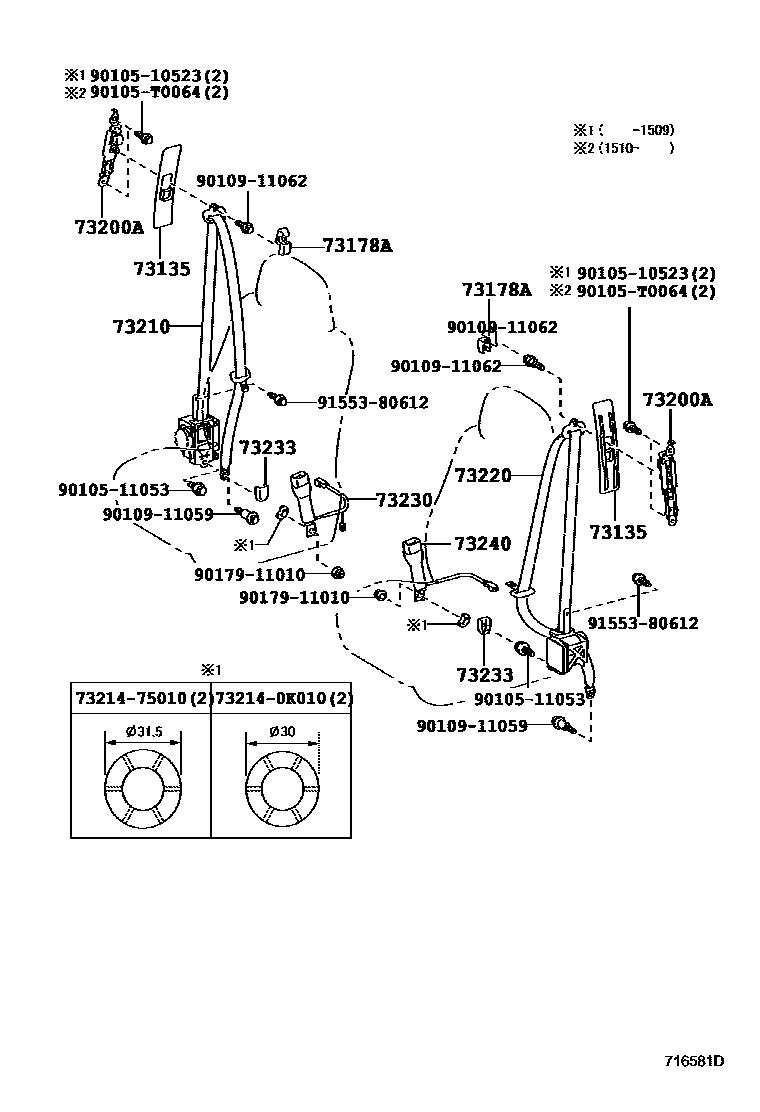

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT 0003 1REAR NO.2 SEAT

73135COVER, SHOULDER BELT ANCHORAGE PLATE

main73135-52020-B0×2iZGE21..E,J201212-201606

GRAY,TRIM1#

73178ACAP, SEAT BELT ANCHOR COVER

main73178-52020-B0×2iZGE21..G201212-201402

GRAY,TRIM1#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-52050-B1×2iZGE21..G201212-201402

GRAY,TRIM1#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0M020-B0iZGE21200911-201212

DK.GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0M020-B0iZGE21200911-201212

DK.GRAY,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0M050-B0iZGE21200911-201212

DK.GRAY,TRIM1#

73233COVER, LAP BELT OUTER ANCHOR

main73233-0M010-B0×2iZGE21200911-201212

DK.GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0M040-B0iZGE21..E,J200911-201212

DK.GRAY,TRIM1#

main73230-0M060-B0iZGE21..E; ZGE21..G200911-201212

2.0E-OPTION,DK.GRAY,TRIM1#; DK.GRAY,TRIM1#

732140K010PLATE, FRONT SEAT BELT ANCHOR

main73214-0K010

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511053

main90105-11053

90105T0064

main90105-T0064

9010911059

main90109-11059

9010911062

main90109-11062

9017911010

main90179-11010

9155380612

main91553-80612

17 parts on this diagram · 3 diagrams in section
