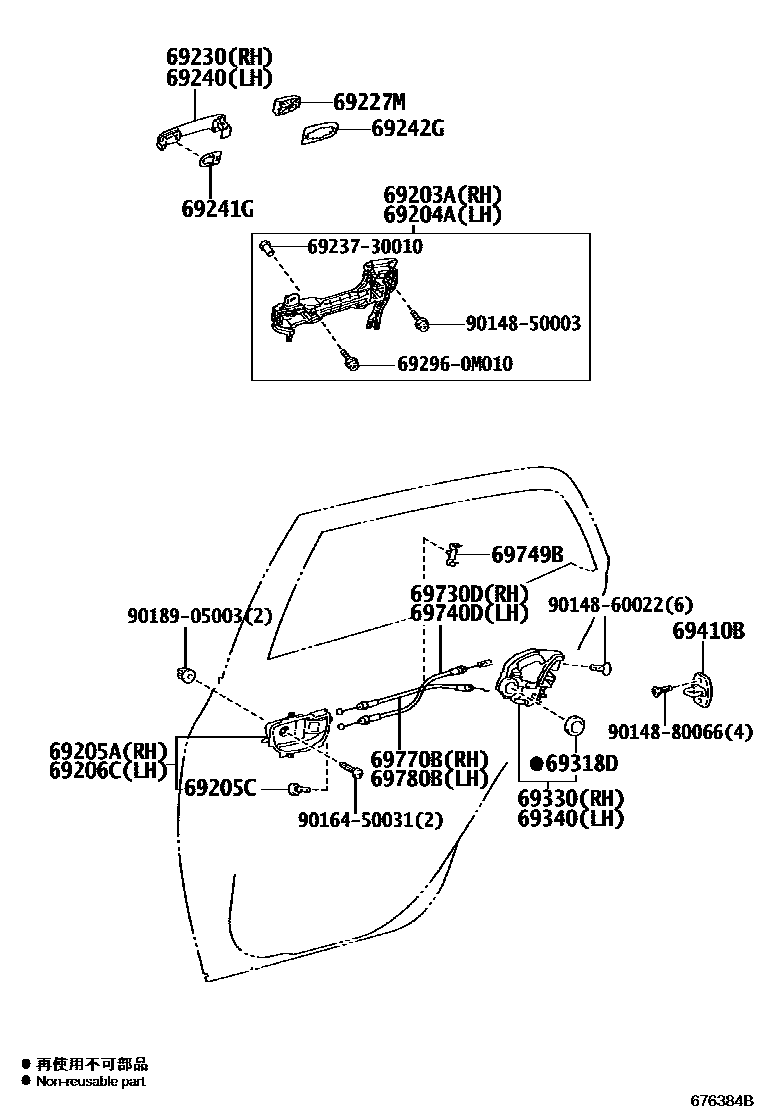

REAR DOOR LOCK & HANDLE
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
69227MCOVER, REAR DOOR OUTSIDE HANDLE
LESS COLOR
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PAINT REQ.
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PAINT REQ.
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69749BCLAMP, REAR DOOR LOCK LINK
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
692960M010SCREW, DOOR INSIDE HANDLE
main69296-0M010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9016450031
main90164-50031
9018905003
main90189-05003
26 parts on this diagram · 1 diagram in section
