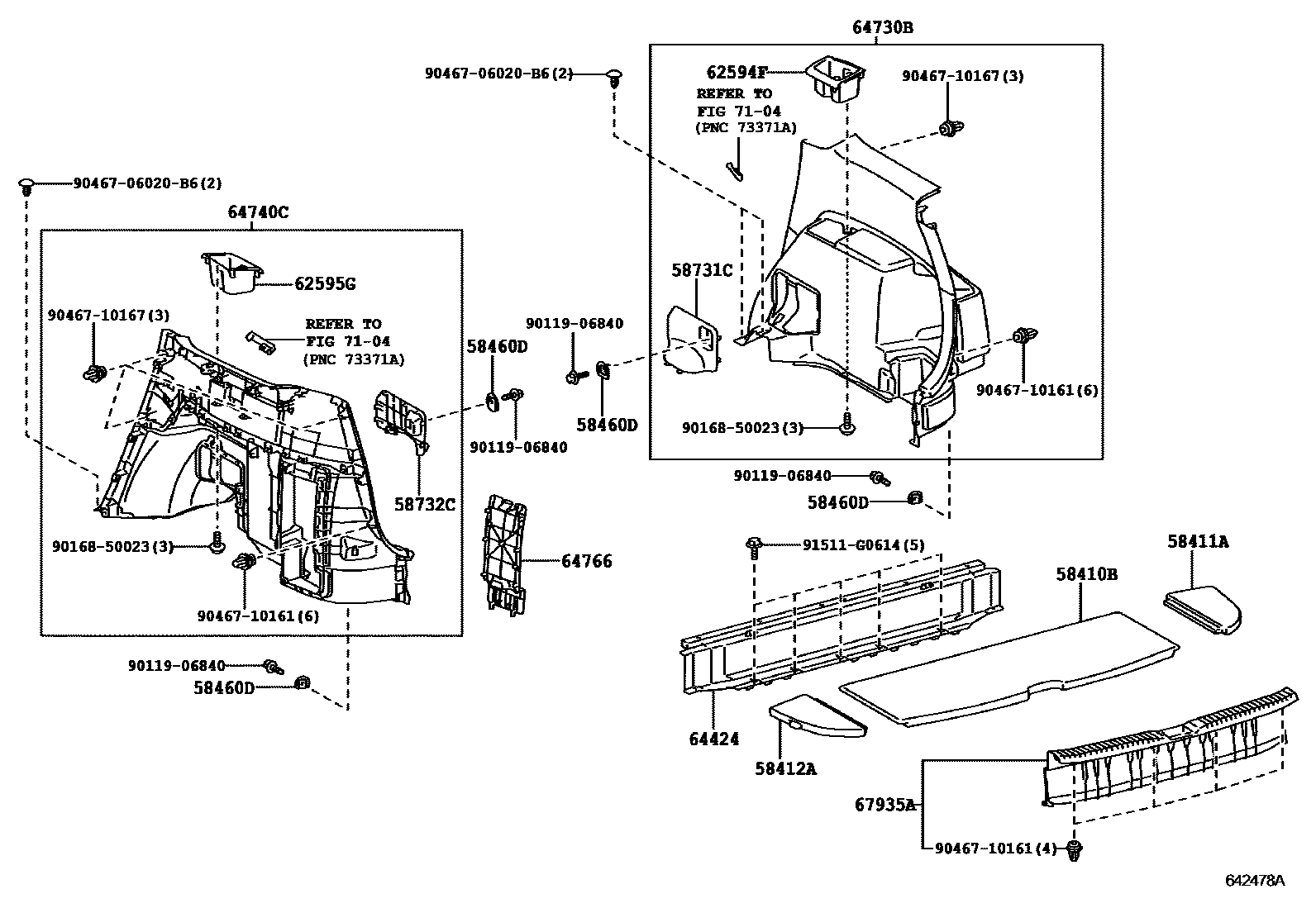

DECK BOARD & DECK TRIM COVER

58410BBOARD ASSY, DECK

main58410-0M020-B0iZGE21200911-201606

DARK GRAY,TRIM1#

58411ABOARD, DECK, NO.1

main58411-0M020-B0iZGE21200911-201606

DARK GRAY,TRIM1#

58412ABOARD, DECK, NO.2

main58412-0M020-B0iZGE21200911-201606

DARK GRAY,TRIM1#

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iZGE21200911-201212

58731CCAP, REAR ABSORBER

main58731-0M010-B0iZGE21200911-201606

DK.GRAY,TRIM1#

58732CCAP, REAR ABSORBER

main58732-0M010-B0iZGE21200911-201606

DK.GRAY,TRIM1#

62594FPOCKET, QUARTER TRIM, RH

main62594-0M020-B0iZGE21200911-201606

DK.GRAY,TRIM1#

62595GPOCKET, QUARTER TRIM, LH

main62595-0M020-B0iZGE21200911-201606

DK.GRAY,TRIM1#

64424SEPARATOR, LUGGAGE ROOM BOX

main64424-0M010iZGE21200911-201212

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-0M030-B1iZGE21..E,G200911-201606

DK.GRAY,TRIM1#

main64730-0M040-B0iZGE21..J200911-201412

DK.GRAY,TRIM1#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-0M030-B1iZGE21..E,G200911-201606

DK.GRAY,TRIM1#

main64740-0M040-B0iZGE21..J200911-201412

DK.GRAY,TRIM1#

64766COVER SUB-ASSY, QUARTER TRIM JACK

main64766-0M020-B0iZGE21200911-201606

DK.GRAY,TRIM1#

67935APLATE, BACK DOOR SCUFF

main67935-0M020-B0iZGE21200911-201606

DK.GRAY,TRIM1#

7104

9011906840

main90119-06840

9016850023

main90168-50023

9046706020B6

main90467-06020B6

9046710161

main90467-10161

9046710167

main90467-10167

91511G0614

main91511-G0614

20 parts on this diagram · 1 diagram in section
