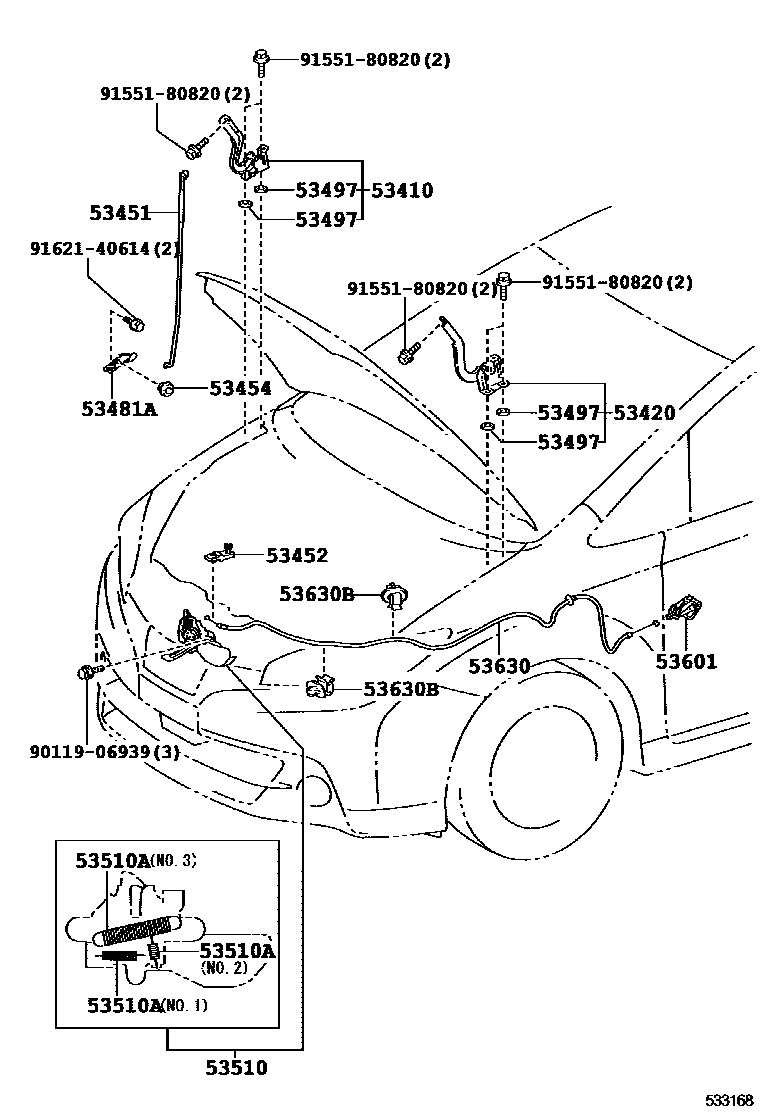

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-0M030iZGE21200911-201212

53420HINGE ASSY, HOOD, LH

main53420-0M030iZGE21200911-201212

53451ROD, HOOD SUPPORT

main53440-0M020iZGE21200911-201212

53452HOLDER, HOOD STAY

main53452-0M010iZGE21201212

53454CLIP, HOOD SUPPORT ROD

main53454-52040iZGE21200911-201212

53481ABRACKET, HOOD SUPPORT, RH

main53481-68010iZGE21200911-201212

53497PAD, HOOD HINGE, NO.1

main53497-20070×4iZGE21200911-201212

T=2.0

main53497-42010×4iZGE21201212

T=0.5

53510LOCK ASSY, HOOD

main53510-68040iZGE21200911-201212

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iZGE21200911-201212

WD=0.9,CW=21,NO.1

main90506-12063iZGE21201212

WD=1.2,CW=8.5,NO.2

main90506-16077iZGE21201212

WD=1.6,CW=12,NO.3

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B3iZGE21200911-201212

DK.GRAY,TRIM1#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0M020iZGE21200911-201212

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-T0003×2iZGE21200911-201212

9011906939

main90119-06939

9155180820

main91551-80820

9162140614

main91621-40614

15 parts on this diagram · 1 diagram in section
