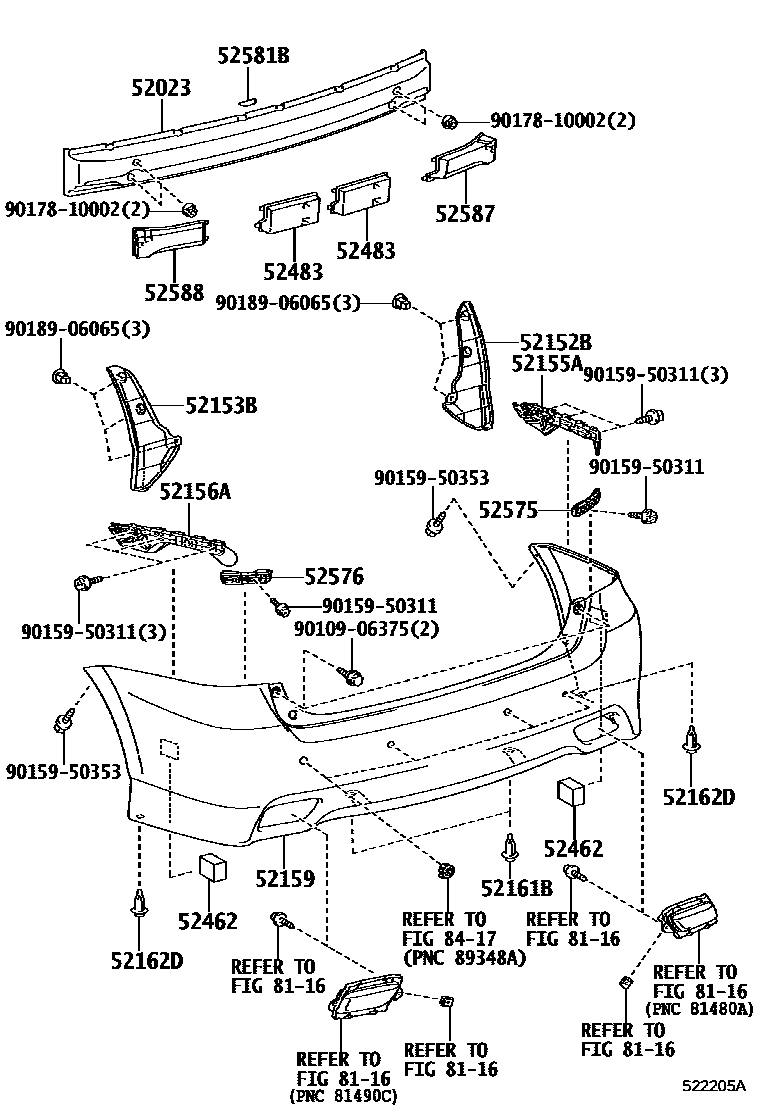

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52152BEXTENSION, REAR BUMPER, RH
52153BEXTENSION, REAR BUMPER, LH
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.,2.0G-OPTION
52462PAD, REAR BUMPER, RH
52483BRACKET, REAR BUMPER SHIELD, CENTER
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52581BPROTECTOR, REAR BUMPER
52587RETAINER, REAR BUMPER END, RH
52588RETAINER, REAR BUMPER END, LH
8116REAR FOG LAMP
8417CLEARANCE & BACK SONAR
9010906375
main90109-06375
9015950311
main90159-50311
9015950353
main90159-50353
9017810002
main90178-10002
9018906065
main90189-06065
22 parts on this diagram · 1 diagram in section
