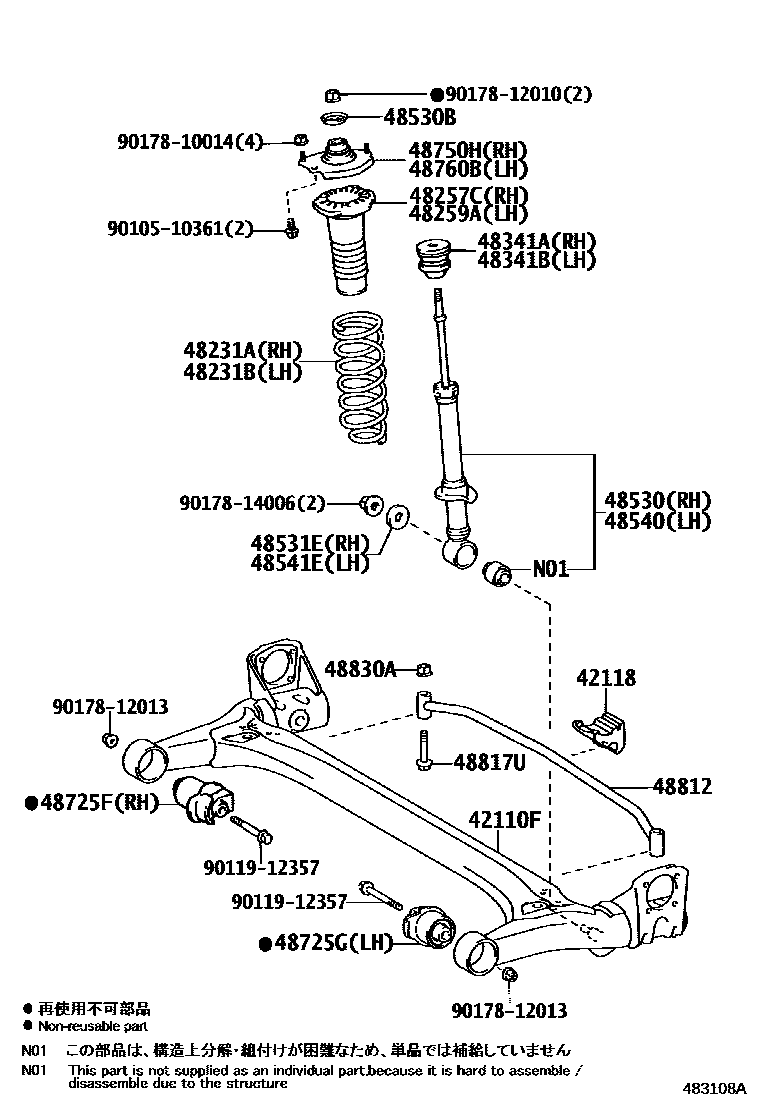

REAR SPRING & SHOCK ABSORBER
42118DAMPER, REAR AXLE BEAM
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)
48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)
48725FBUSH, REAR AXLE CARRIER, RH
48725GBUSH, REAR AXLE CARRIER, LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48760BSUPPORT ASSY REAR SUSPENSION, LH
48812BAR, STABILIZER, REAR
48817UBOLT(FOR REAR STABILIZER)
48830ANUT(FOR REAR STABILIZER LINK)
9010510361
main90105-10361
9011912357
main90119-12357
9017810014
main90178-10014
9017812010
main90178-12010
9017812013
main90178-12013
9017814006
main90178-14006
26 parts on this diagram · 1 diagram in section
