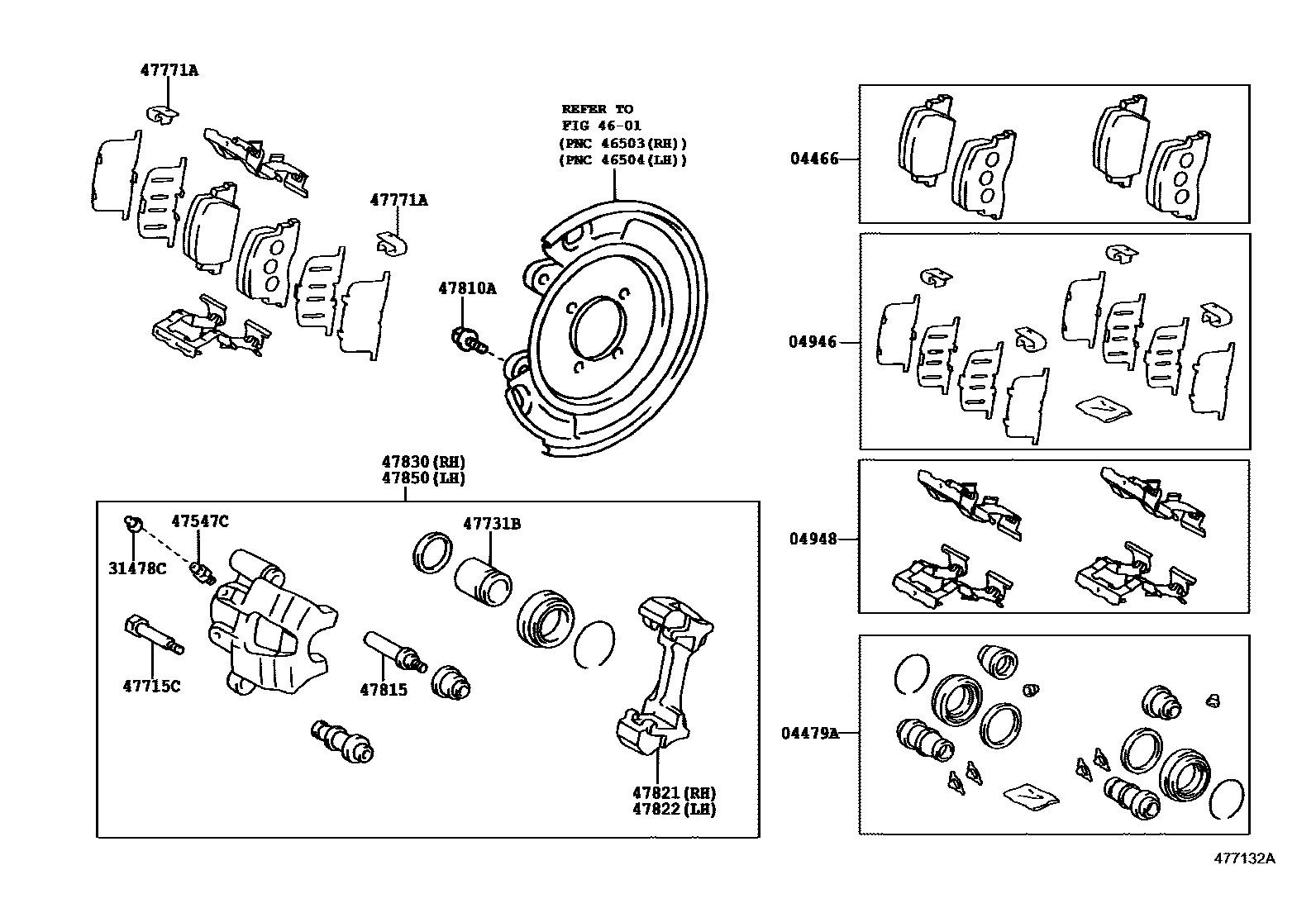

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-48080iZGE21..G200911-201412

MARK AK PA561

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-06300iZGE21200911-201012

main04479-06310iZGE21201012-201412

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-06100iZGE21200911-201412

04948FITTING KIT, DISC BRAKE, REAR

main04948-48010iZGE21200911-201412

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iZGE21200911-201412

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iZGE21200911-201412

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-02070iZGE21200911-201412

47731BPISTON, REAR DISC BRAKE

main47731-48020iZGE21..E,J200911-201412

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-32050iZGE21200911-201412

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10576iZGE21201308-201309

main90119-10379iZGE21200911-201412

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-0M010iZGE21200911-201412

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-0M010iZGE21200911-201412

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-0M010iZGE21200911-201412

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-0M010iZGE21200911-201412

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0M010iZGE21200911-201412

16 parts on this diagram · 1 diagram in section
