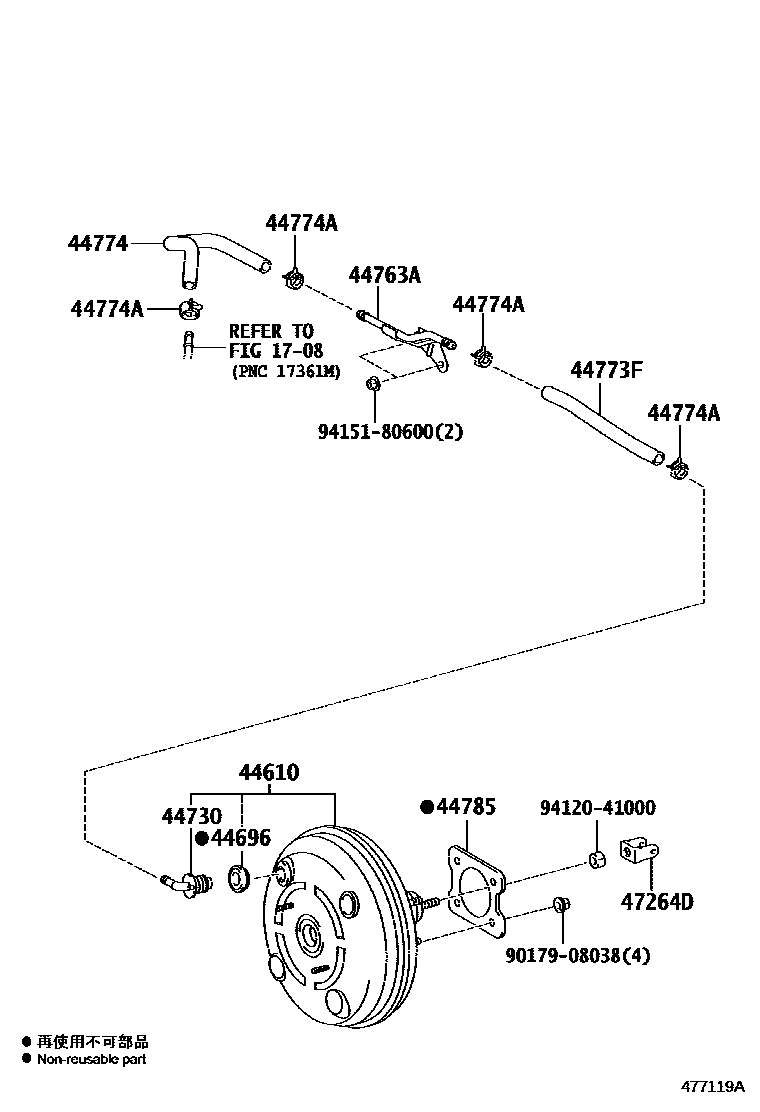

BRAKE BOOSTER & VACUUM TUBE

1708VACUUM PIPING

→ Go to FIG 17-08

44610BOOSTER ASSY, BRAKE

main44610-0M010supersedes 44610-0M020iZGE21..G201212-201412

main44610-0M020iZGE21..E,J200911-201212

44696GROMMET, CHECK VALVE

main90480-24439iZGE21200911-201212

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iZGE21..G201212-201412

44763ATUBE, HOSE TO HOSE, NO.1

main44763-02150iZGE21200911-201212

44773FHOSE, UNION TO CHECK VALVE

main44773-0M010iZGE21200911-201212

44774HOSE, UNION TO CONNECTOR TUBE

main44774-02190iZGE21200911-201212

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500×4iZGE21200911-201212

44785GASKET, BRAKE BOOSTER

main44785-12040iZGE21200911-201212

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-02120iZGE21200911-201212

9017908038

main90179-08038

9412041000

main94120-41000

9415180600

main94151-80600

13 parts on this diagram · 1 diagram in section
