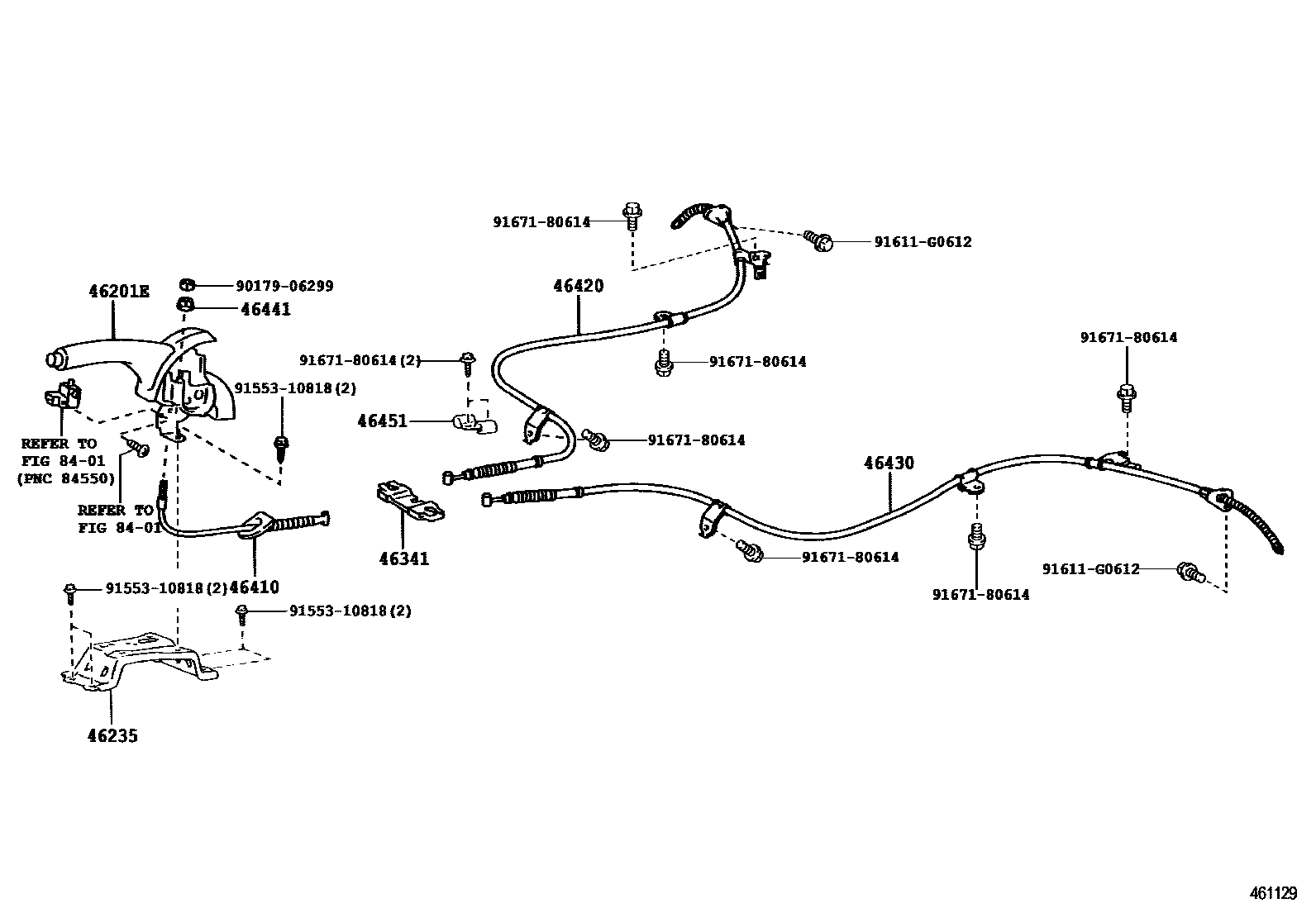

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0M010-B0iZGE21..E,J200911-201606

DK.GRAY,TRIM1#

main46201-0M020-B0iZGE21..G200911-201606

DK.GRAY,TRIM1#

46235BRACKET, PARKING BRAKE LEVER SUPPORT

main46235-0M020iZGE21200911-201212

46341EQUALIZER, PARKING BRAKE

main46341-20070iZGE21200911-201212

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0M020iZGE21200911-201212

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0M010iZGE21200911-201606

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0M010iZGE21200911-201606

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iZGE21200911-201212

46451BRACKET, CABLE SUPPORT

main46451-0M010iZGE21200911-201212

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017906299

main90179-06299

9155310818

main91553-10818

91611G0612

main91611-G0612

9167180614

main91671-80614

13 parts on this diagram · 2 diagrams in section
