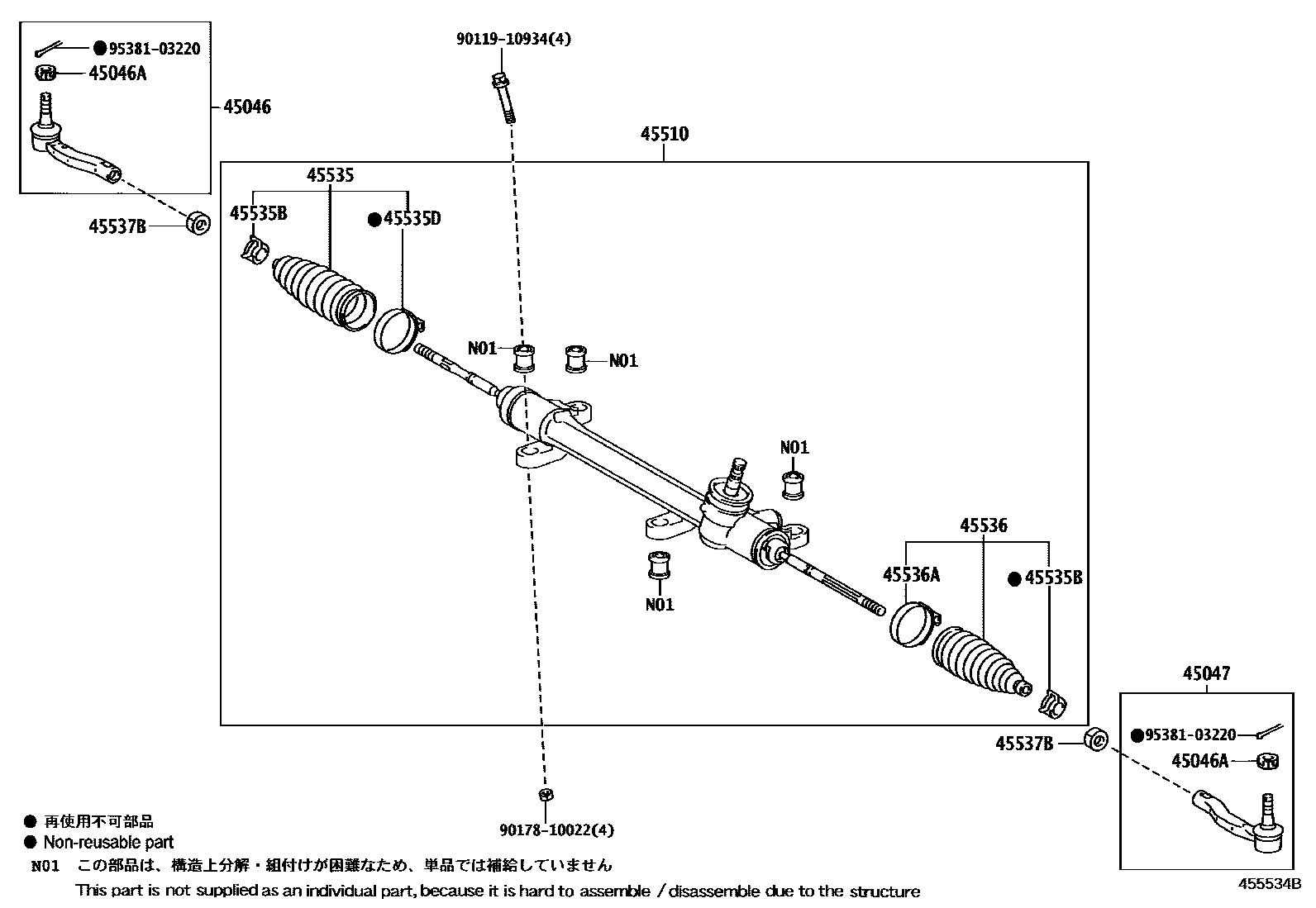

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45047-49025iZGE21200911-201212

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iZGE21201212

45047END SUB-ASSY, TIE ROD, LH

main45046-49095iZGE21200911-201212

45510GEAR ASSY, STEERING

main45510-68060iZGE21..E; ZGE21..G201212-201304

2.0E-OPTION

main45510-68061supersedes 45510-68071iZGE21..G201305

main45510-68070iZGE21..E,J201212-201304

45535BOOT, STEERING RACK, NO.1

main45535-59025iZGE21200911-201212

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2iZGE21200911-201212

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-52010iZGE21200911-201212

45536BOOT, STEERING RACK, NO.2

main45535-59025iZGE21200911-201212

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-52010iZGE21200911-201212

45537BNUT, RACK END LOCK

main90170-15001×2iZGE21201212-201307

main90179-15006×2iZGE21201308

9011910934

main90119-10934

9017810022

main90178-10022

9538103220

main95381-03220

13 parts on this diagram · 1 diagram in section
