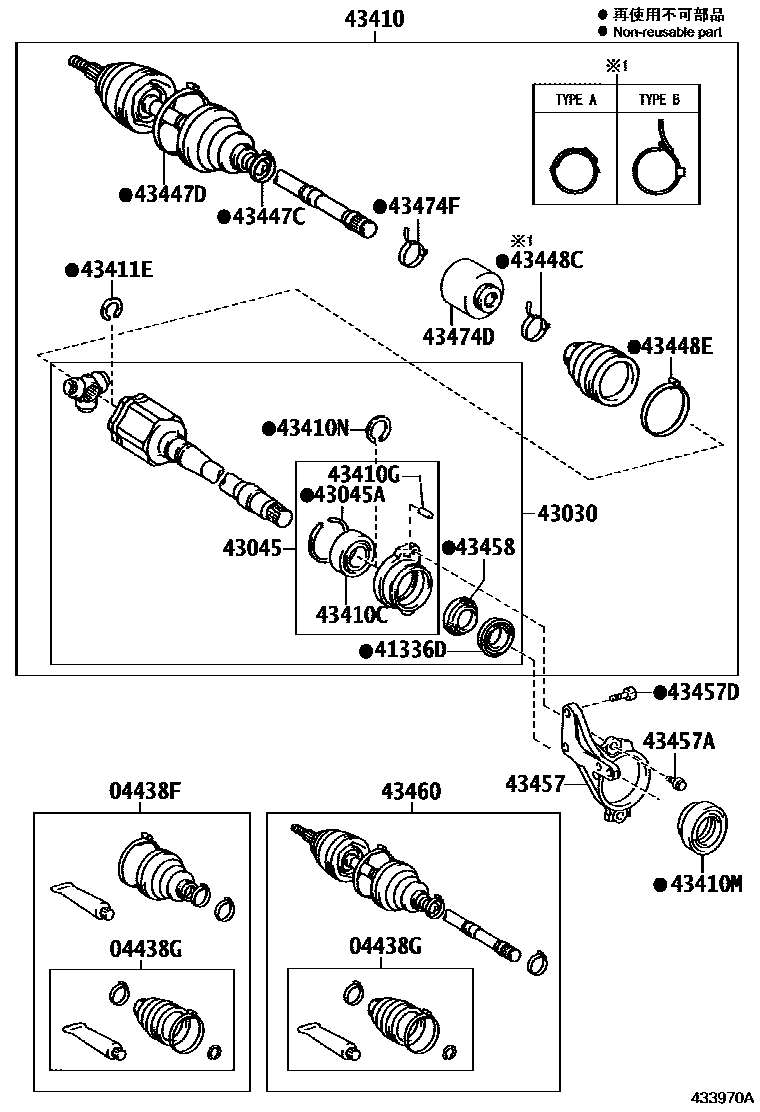

FRONT DRIVE SHAFT
04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
41336DCOVER, FRONT DRIVE SHAFT DUST, RH
43030JOINT ASSY, FRONT DRIVE INBOARD, RH
43045CASE SUB ASSY, DRIVE SHAFT BEARING
43045ARING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)
43410CBEARING (FOR FRONT DRIVE SHAFT)
43410GPIN, STRAIGHT (FOR FRONT DRIVE SHAFT)
43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43457BRACKET, DRIVE SHAFT BEARING
43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
*10-1.25PX22-19.5
43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
43458COVER, FRONT DRIVE SHAFT DUST
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
23 parts on this diagram · 2 diagrams in section
