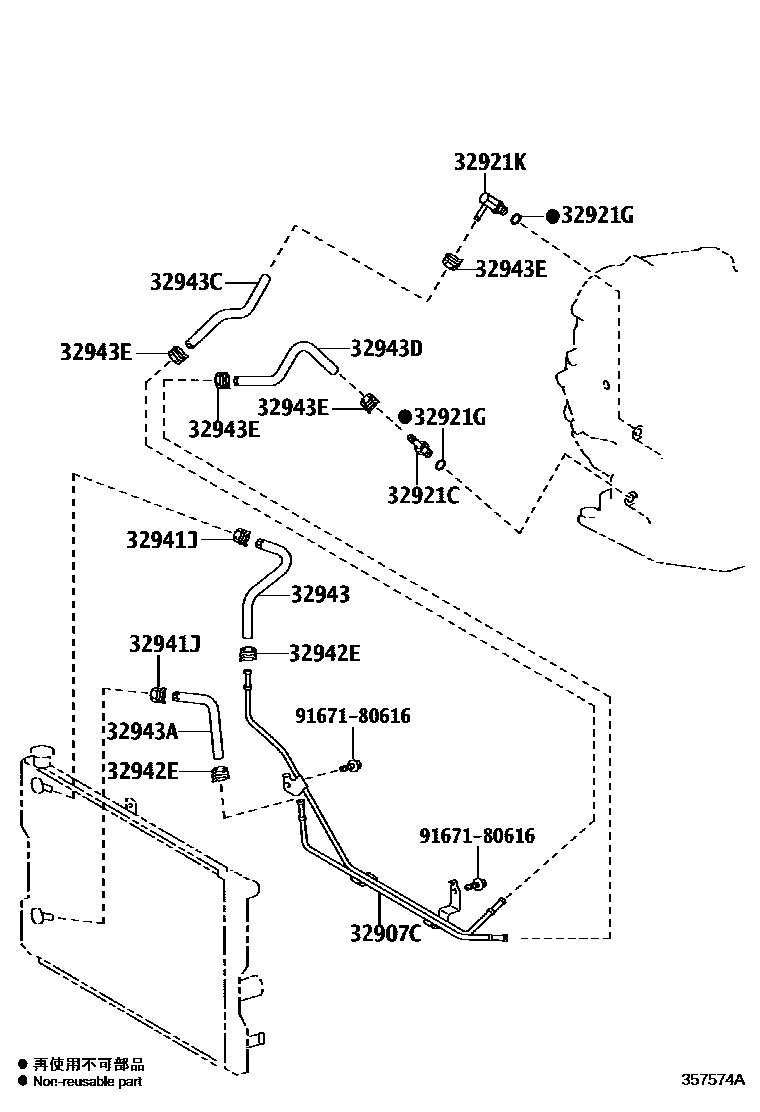

OIL COOLER & TUBE (ATM)

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32907-0M010iZGE21..4FC200911

32921CUNION(FOR OIL COOLER TUBE)

main90404-13004iZGE21..4FC200911

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iZGE21..4FC200911

32921KUNION, NO.2(FOR OIL COOLER TUBE)

main90407-13009iZGE21..4FC200911

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main96137-41501×2iZGE21..4FC200911

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main96135-51300×2iZGE21..4FC200911-201010

main96137-41501×2iZGE21..4FC201011

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-0M030iZGE21..4FC200911

32943AHOSE, TRANSMISSION OIL COOLER, NO.2

main32943-0M040iZGE21..4FC200911

32943CHOSE, TRANSMISSION OIL COOLER, NO.3

main32943-0M010iZGE21..4FC200911

32943DHOSE, TRANSMISSION OIL COOLER, NO.4

main32943-0M020iZGE21..4FC200911

32943ECLIP, NO.3(FOR OIL COOLER HOSE)

main90466-16004×4iZGE21..4FC200911

9167180616

main91671-80616

12 parts on this diagram · 1 diagram in section
