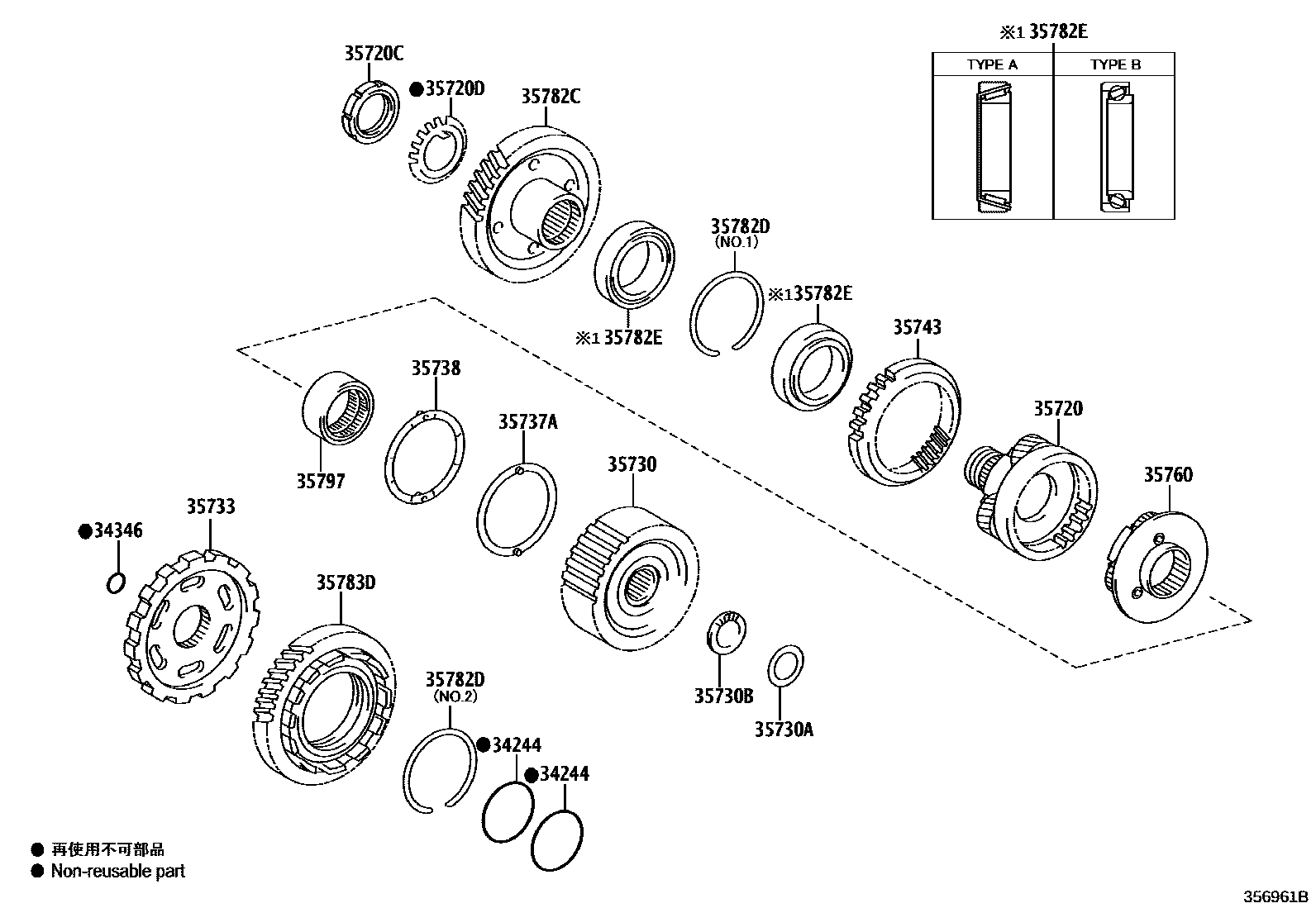

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

34244RING, UNDERDRIVE CLUTCH DRUM OIL SEAL

main34244-21010×2iZGE21..4FC200911

34346RING, UNDERDRIVE OUTPUT SHAFT OIL SEAL

main34346-21011iZGE21..4FC200911

35720GEAR ASSY, FRONT PLANETARY

main35720-44010iZGE21..4FC200911

35720CNUT (FOR FRONT PLANETARY GEAR)

main90179-46001iZGE21..4FC200911

35720DWASHER (FOR FRONT PLANETARY GEAR)

main90209-46001iZGE21..4FC200911

35730GEAR ASSY, REAR PLANETARY SUN

main35730-21010iZGE21..4FC200911

35730ARACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR)

main35789-21010iZGE21..4FC200911

35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)

main90374-33003iZGE21..4FC200911

35733GEAR, PARKING LOCK

main35733-32040iZGE21..4FC200911

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

main35737-21010iZGE21..4FC200911

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35737-21010iZGE21..4FC200911

35743GEAR, FRONT PLANETARY RING

main35743-21010iZGE21..4FC200911

35760GEAR ASSY, REAR PLANETARY

main35760-33030iZGE21..4FC200911

35782CGEAR, COUNTER DRIVE

main35782-32031iZGE21..4FC200911

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90520-84001iZGE21..4FC200911

NO.1

main90520-89004iZGE21..4FC200911

NO.2

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90366-60009×2iZGE21..4FC200911

TYPE A:REFER ILLUST.

main90369-59001×2iZGE21..4FC200911

TYPE B:REFER ILLUST.

35783DGEAR, COUNTER DRIVEN

main35783-33040iZGE21..4FC200911

35797RACE, 1 WAY CLUTCH INNER

main35797-21010iZGE21..4FC200911

18 parts on this diagram · 1 diagram in section
