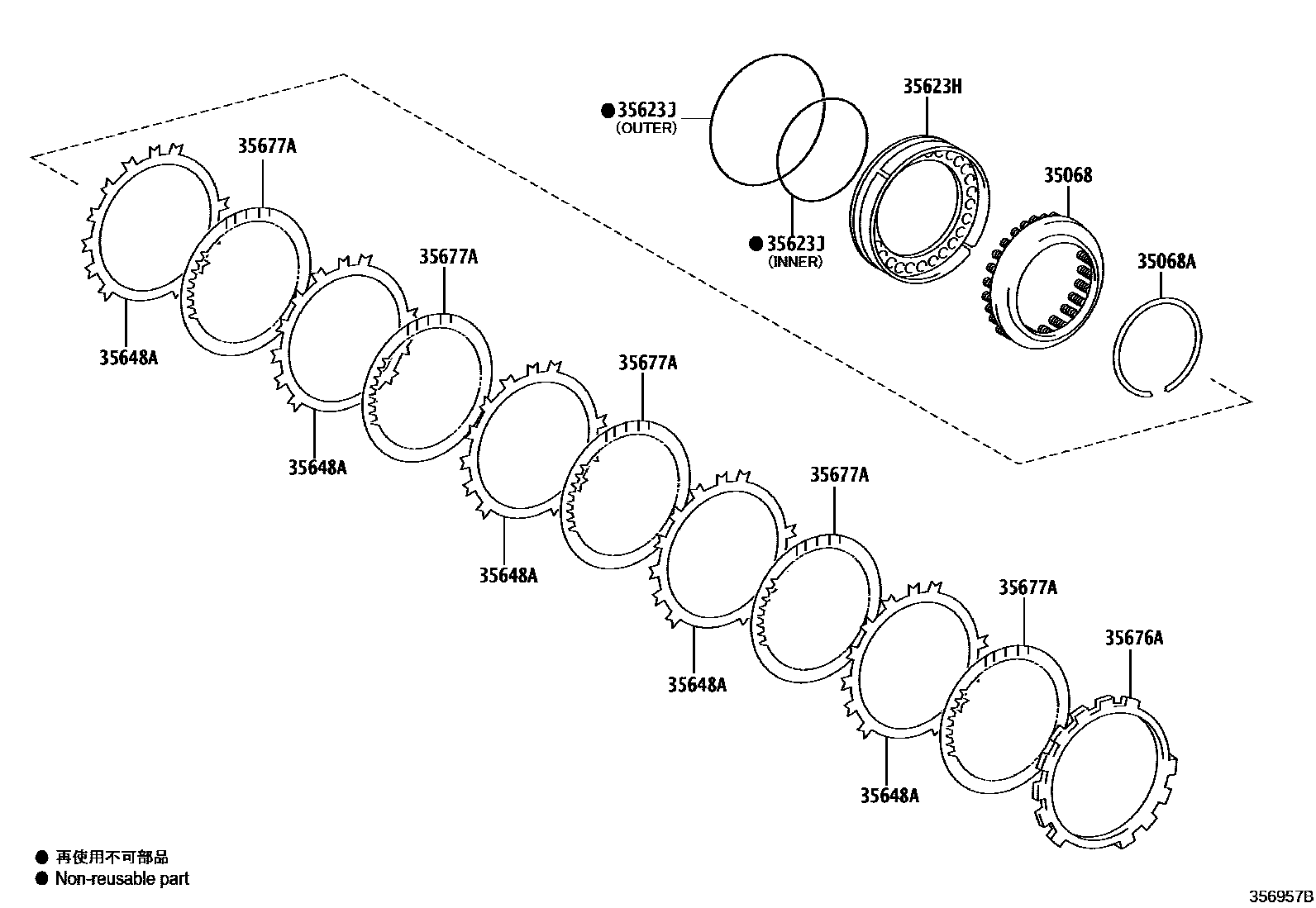

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-21010iZGE21..4FC200911

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-99035iZGE21..4FC200911

35623HPISTON, 1ST & REVERSE BRAKE

main35623-48010iZGE21..4FC200911

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99096iZGE21..4FC200911

INNER

main90301-99098iZGE21..4FC200911

OUTER

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35692-21011×5iZGE21..4FC200911

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35678-21010iZGE21..4FC200911

T=1.8,MARK 1

main35678-21020iZGE21..4FC200911

T=1.9,MARK 2

main35678-21030iZGE21..4FC200911

T=2.0,MARK 3

main35678-21040iZGE21..4FC200911

T=2.1,MARK 4

main35678-21050iZGE21..4FC200911

T=2.2,MARK 5

main35678-21060iZGE21..4FC200911

T=2.3,MARK 6

main35678-21070iZGE21..4FC200911

T=2.4,MARK 7

main35678-21080iZGE21..4FC200911

T=2.5,MARK 8

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35682-21010×5iZGE21..4FC200911

7 parts on this diagram · 1 diagram in section
