1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main91512-61045i200911

*10-1.25PX45-30

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-20230i200911

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24018i200911

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-02100i200911

3507BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

→ Go to FIG 35-07

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-44010i200911

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08071i200911

*8-1.25PX30-25

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-02200i200911

35103CRING, O

main90301-10189i201002

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03149i200911

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03157i200911

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-33091i200911-201002

main35104-33092i201002

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001i200911

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196i200911

35104VHOSE (FOR BREATHER PLUG)

main35121-21020i200911

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10036i200911

35104XRING, O (FOR BREATHER PLUG)

main90301-06005i200911

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18016i200911

35106BGASKET, DRAIN PLUG (ATM)

main90430-18008i200911

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-33030i200911

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173i200911

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-06320i200911

*6-1.00PX50-25,NO.1

main90105-08233i200911

*8-1.25PX42-30,NO.2

main90105-08353i200911

*8-1.25PX50-30,NO.3

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

35148GASKET, GOVERNOR APPLY, NO.1

main35145-21010i200911-201002

35149BGASKET, TRANSAXLE CASE 2ND BRAKE

main35149-21010i200911

35159GASKET, BRAKE DRUM

main35159-21010i200911

35163APLATE, TRANSAXLE REAR COVER

main35163-28010i200911

35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)

main90148-60055i200911

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-21020i200911

35179GASKET, OVERDRIVE BRAKE

main35179-32010i200911-201002

main90301-06008i201002

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173i200911

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011i200911

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-02010i200911

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

3292812060CLAMP, FLEXIBLE HOSE, NO.1

main32928-12060

9036425017

main90364-25017

9161160628

main91611-60628

9167180614

main91671-80614

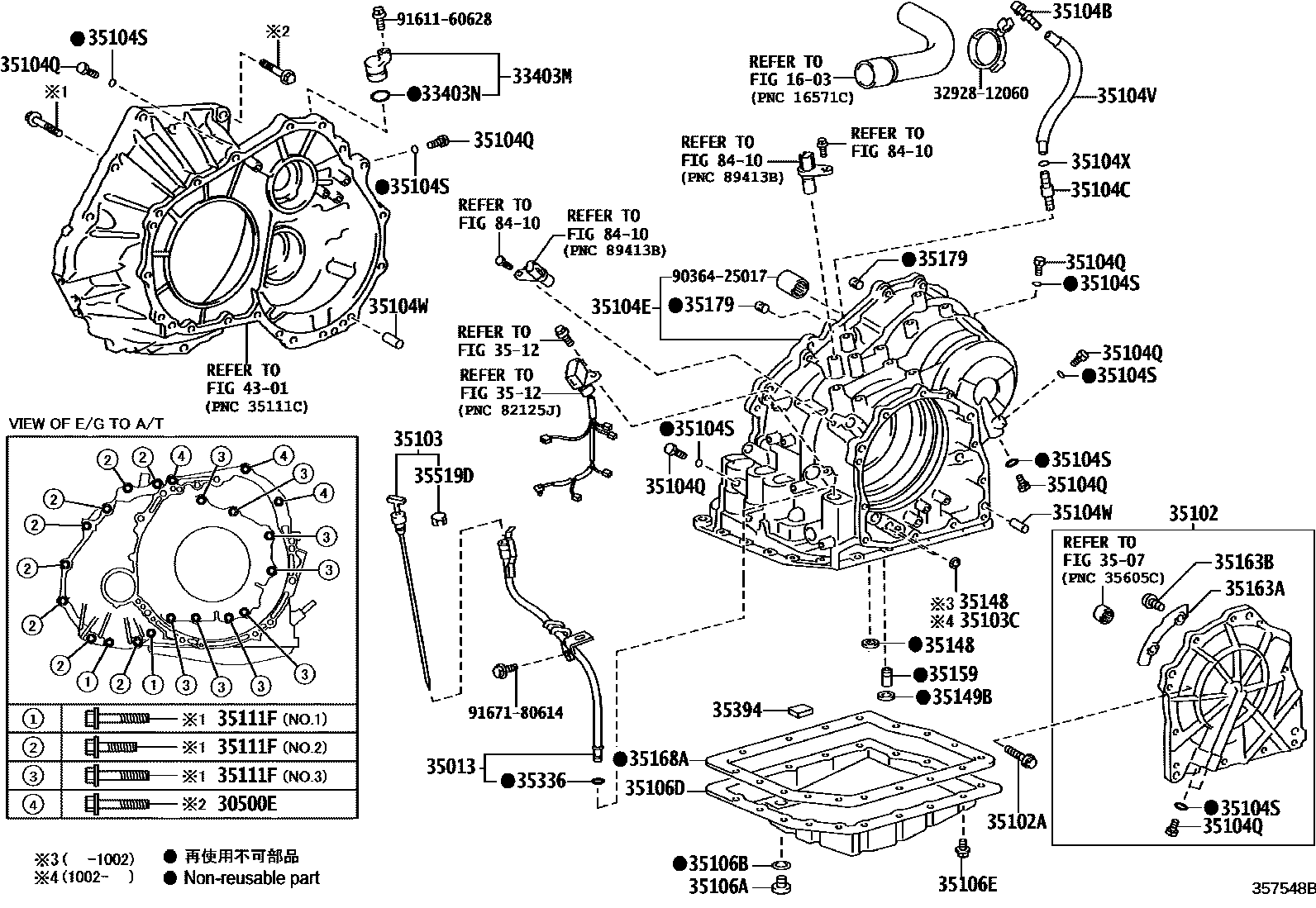

TRANSMISSION CASE & OIL PAN (ATM)
