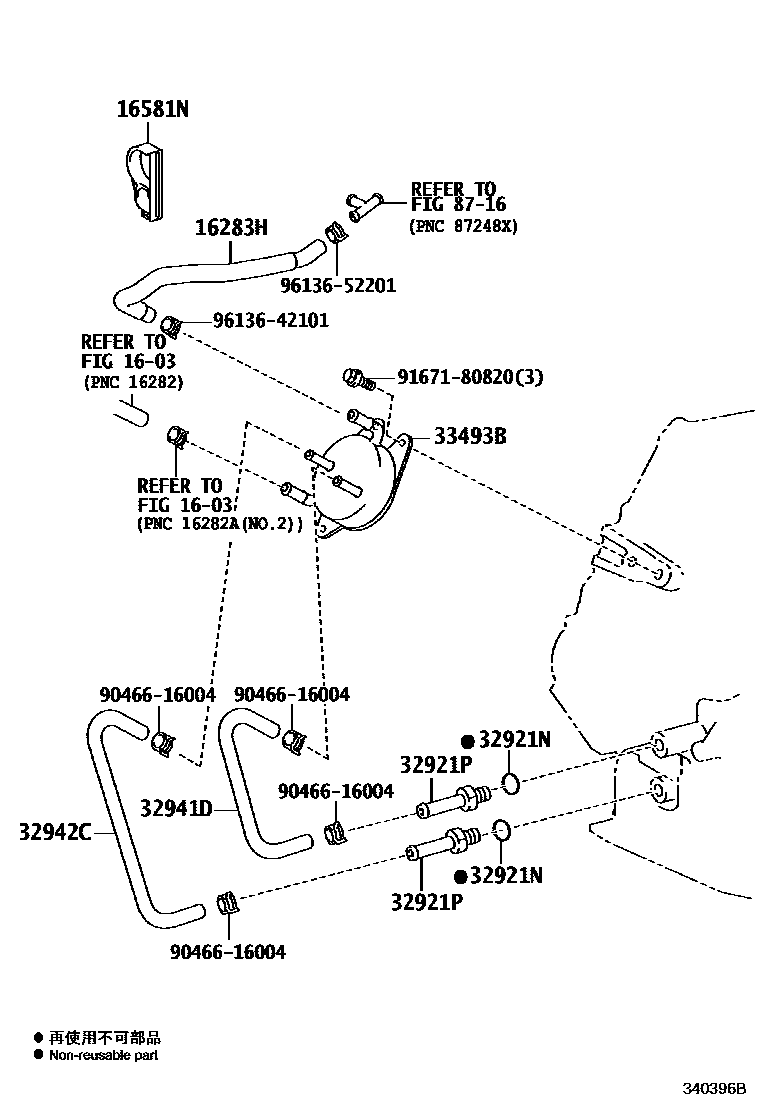

OIL COOLER & TUBE(CVT)

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16283HHOSE, WATER BY-PASS, NO.6

main16261-37060i3ZRFE..ZGE21..E,J201212-201412

16581NCLAMP, HOSE(FOR WATER HOSE)

main16581-22070i3ZRFE..ZGE21..E,J201212-201412

32921NRING, O(FOR OIL COOLER TUBE UNION)

main90301-10018iZGE21201512-201606

main90301-10189iZGE21201212-201511

32921PUNION(FOR OIL COOLER TUBE)

main90404-13004iZGE21201212-201511

main90404-13010iZGE21201512-201606

32941DHOSE, OIL COOLER INLET

main32943-02470iZGE21..G201212-201412

32942CHOSE, OIL COOLER OUTLET, NO.1

main32943-02480iZGE21..G201212-201412

33493BCOOLER, OIL

main33493-28040iZGE21..G201212-201412

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9046616004

main90466-16004

9167180820

main91671-80820

9613642101

main96136-42101

9613652201

main96136-52201

13 parts on this diagram · 1 diagram in section
