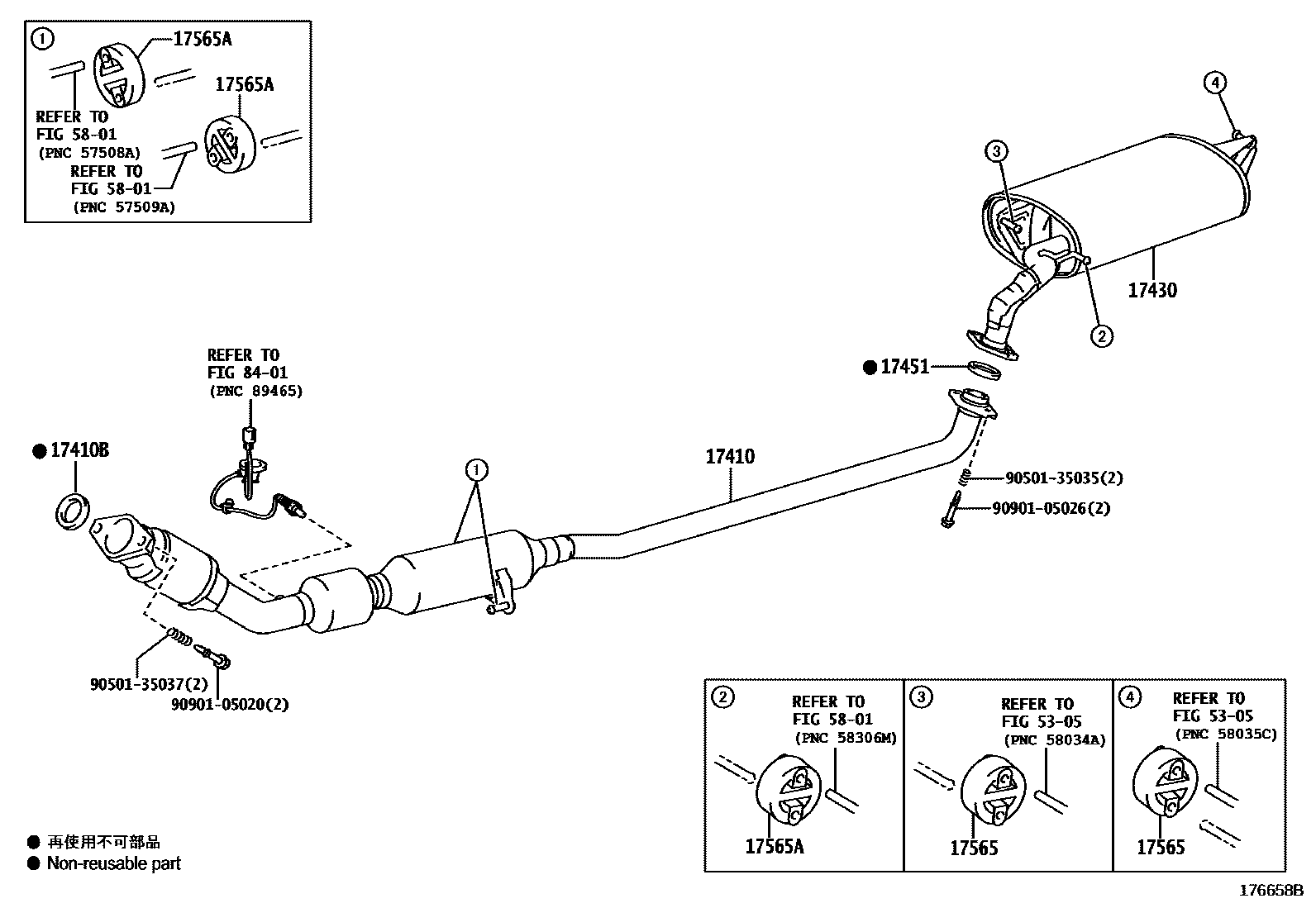

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-0T170200911-201212

main17410-0T790201212

17410BGASKET, EXHAUST PIPE

main17451-28040201511

main17451-28070200911-201510

17430PIPE ASSY, EXHAUST, TAIL

main17430-0T120200911-201202

main17430-0T121201203-201212

17451GASKET, EXHAUST PIPE

main17451-37010200911-201212

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0D120200911-201212

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0D110200911-201212

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

13 parts on this diagram · 1 diagram in section
