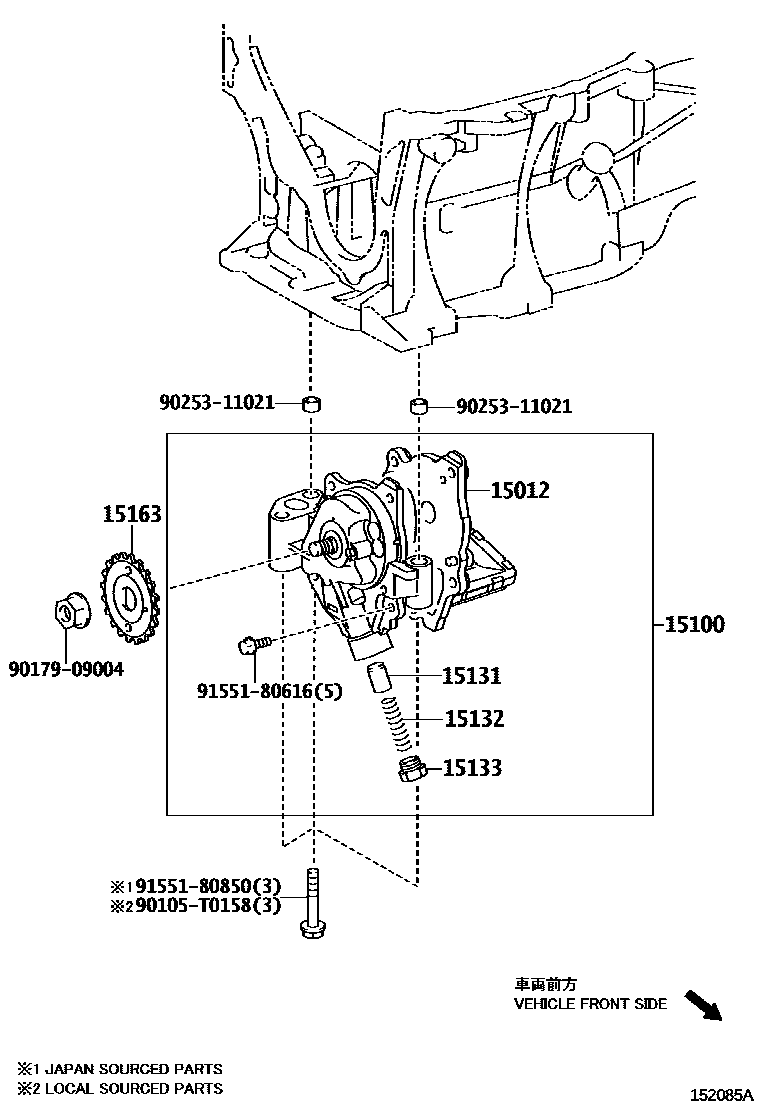

ENGINE OIL PUMP

15012COVER SUB-ASSY, OIL PUMP

main15012-0T070i3ZRFE..ZGE21201401

MADE IN THAILAND

main15012-37010i3ZRFE..ZGE21200911-201212

15100PUMP ASSY, OIL

main15100-0T070i3ZRFE..ZGE21201401

(L)

main15100-37030i3ZRFE..ZGE21201212-201401

15131VALVE, OIL PUMP RELIEF

main15131-0A040i3ZRFE..ZGE21200911-201212

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46060i3ZRFE..ZGE21200911-201212

15133PLUG, OIL PUMP RELIEF VALVE

main15133-0T070i3ZRFE..ZGE21201401

MADE IN THAILAND

main15133-28020i3ZRFE..ZGE21200911-201212

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-0H031i3ZRFE..ZGE21201401

(L)

main15163-28010i3ZRFE..ZGE21201401

(J)

90105T0158

main90105-T0158

9017909004

main90179-09004

9025311021

main90253-11021

9155180616

main91551-80616

9155180850

main91551-80850

11 parts on this diagram · 1 diagram in section
