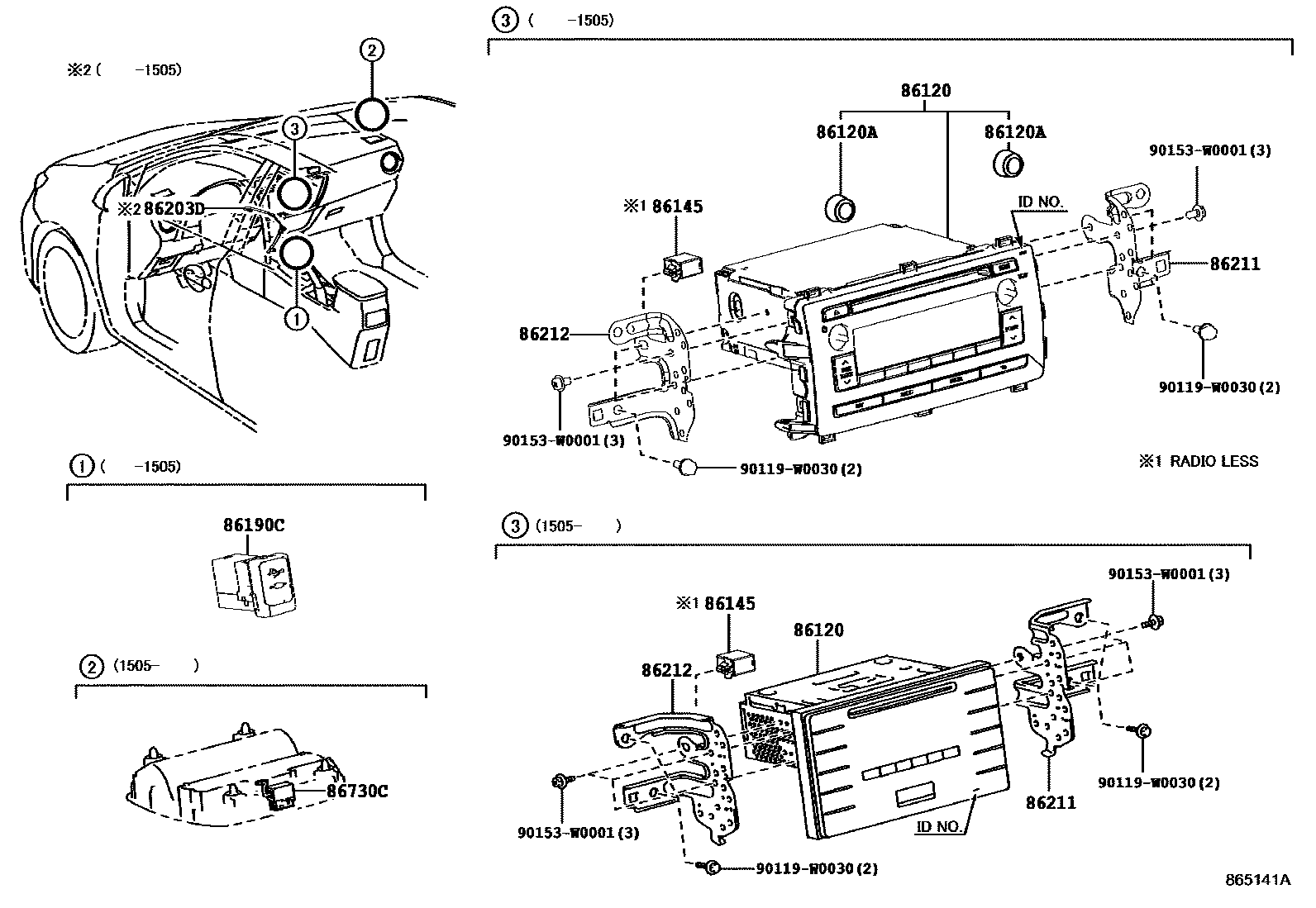

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-02880iZRE181201210-201505

PANASONIC,ID=53876

main86120-02880iZRE181201210-201505

PANASONIC,ID=53876,AUDIO-RADIO LESS & 6SPEAKER

main86120-02J60iZRE181201505-201704

PANASONIC,ID=510096

sub86120-02J61

main86120-02J60iZRE181201505-201704

PANASONIC,ID=510096,AUDIO-RADIO LESS & 6SPEAKER

sub86120-02J61

main86120-02J61iZRE181201705

PANASONIC,ID=510319

main86120-02J61iZRE181201705

PANASONIC,ID=510319,AUDIO-RADIO LESS & 6SPEAKER

86120AKNOB, RADIO RECEIVER SWITCH

main90011-25204iZRE181201210-201505

AUDIO-RADIO LESS & 6SPEAKER

86145CONNECTOR, ANTENNA MALE

main86145-52010

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-0D030iZRE181201210-201505

AUDIO-RADIO LESS & 6SPEAKER

86203DWIRE, STEREO COMPONENT, NO.1

main86203-02160iZRE181201412-201505

AUDIO-RADIO LESS & 6SPEAKER

main86203-12440iZRE181201210-201412

AUDIO-RADIO LESS & 6SPEAKER

86211BRACKET, RADIO, NO.1

main86211-02240iZRE181201210-201505

main86211-02430iZRE181201505

86212BRACKET, RADIO, NO.2

main86212-02200iZRE181201210-201505

main86212-02420iZRE181201505

86730CMICROPHONE ASSY, TELEPHONE

main86730-02010iZRE181201505

AUDIO-RADIO LESS & 6SPEAKER

90119W0030

main90119-W0030

90153W0001

main90153-W0001

10 parts on this diagram · 2 diagrams in section
