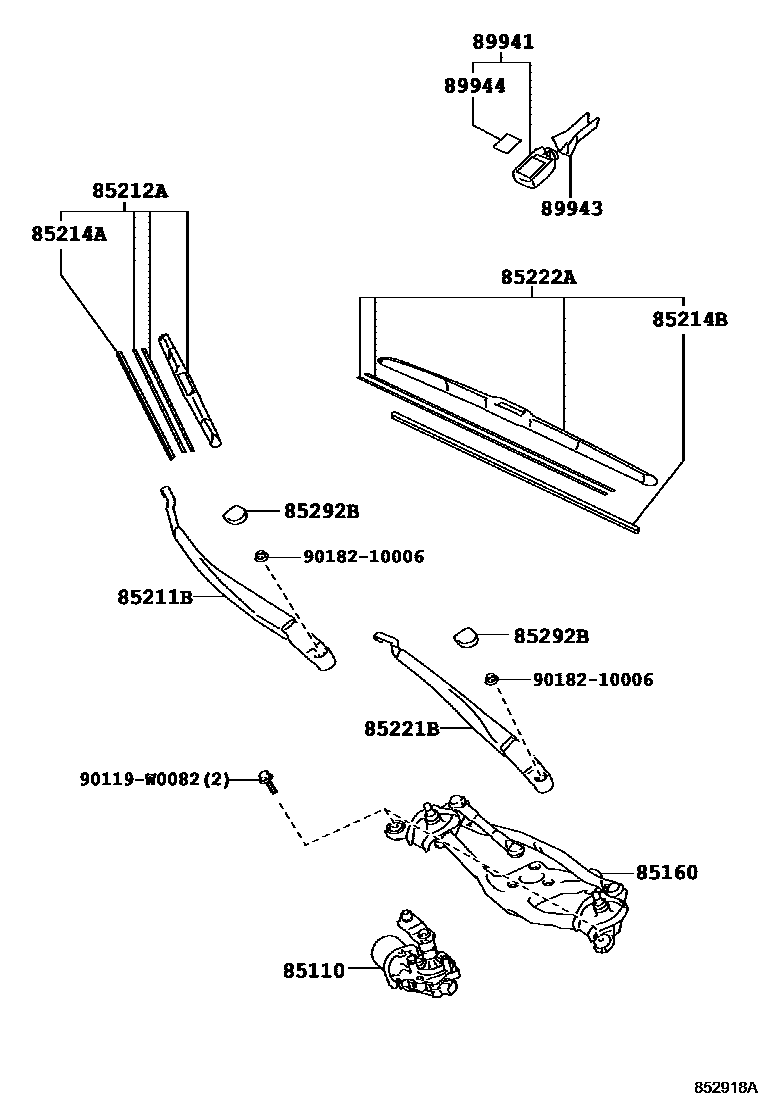

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-02340iZRE181201210-201505

85160LINK ASSY, WINDSHIELD WIPER

main85150-02300iZRE181201210-201505

85211BARM, FRONT WIPER, RH

main85211-02300iZRE181201210-201505

85212ABLADE, FR WIPER, RH

main85212-02250iZRE181201210-201505

85214ARUBBER, WIPER, RH

main85214-02260iZRE181201210-201505

85214BRUBBER, WIPER, LH

main85214-02220iZRE181201210-201302

main85214-02340iZRE181201303-201505

85221BARM, FRONT WIPER, LH

main85221-02310iZRE181201210-201505

85222ABLADE, FR WIPER, LH

main85222-02300iZRE181201210-201505

85292BCAP, FRONT WIPER ARM HEAD

main85292-0F010iZRE181201210-201709

main85292-13010iZRE181201710

89941SENSOR, RAIN

main89941-0D010

89943COVER, RAIN SENSOR

main89943-02020

89944TAPE, RAIN SENSOR

main89944-02010

90119W0082

main90119-W0082

9018210006

main90182-10006

14 parts on this diagram · 1 diagram in section
