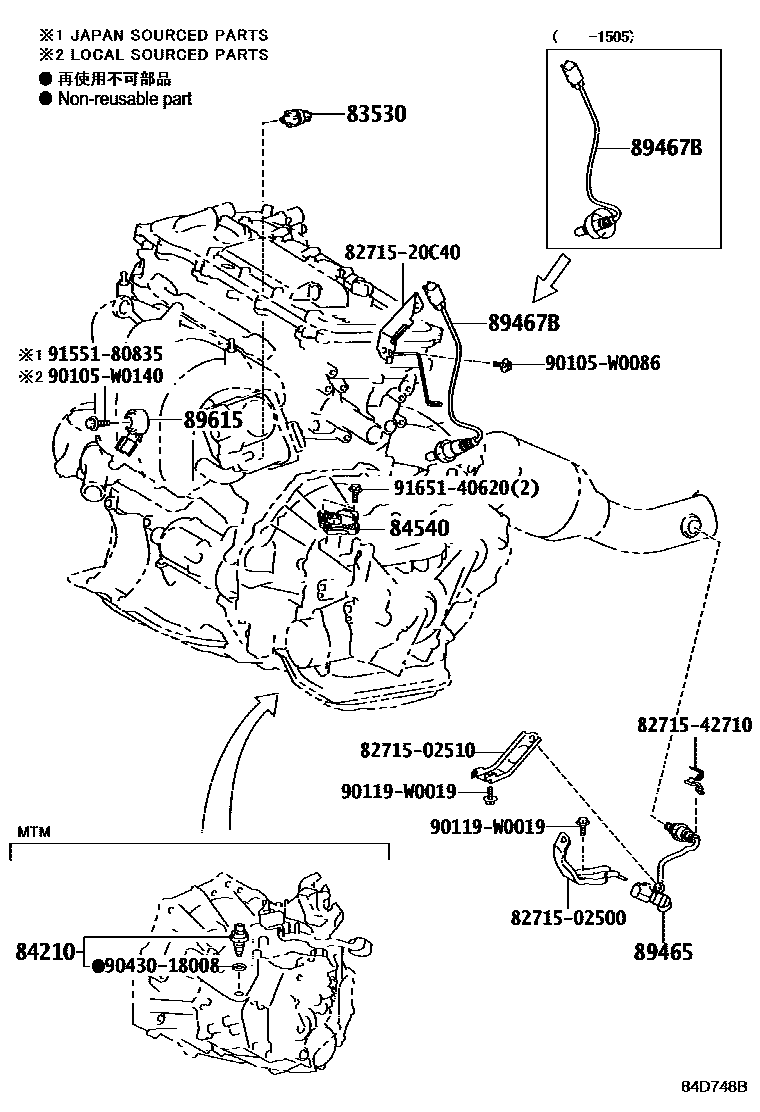

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1INSTRUMENT PANEL 0007 1STEERING 0008 1DOOR,ROOF,FLOOR & BACK DOOR

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iZRE181201210-201505

DENSO

main83530-60020iZRE181201210-201505

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-52050iZRE181..6F201210-201505

84540SWITCH ASSY, NEUTRAL START

main84540-52070iZRE181..CVT201210-201505

89465SENSOR, OXYGEN

main89465-02280iZRE181201210-201505

main89465-12A40iZRE181201505

89467BSENSOR, AIR FUEL RATIO

main89467-12030iZRE181201210-201505

main89467-52060iZRE181201505

89615SENSOR, KNOCK CONTROL

main89615-02020iZRE181201210-201505

(L)

main89615-20090iZRE181201210-201505

(J)

main89615-20090iZRE181201505

8271502500BRACKET,WIRING HARNESS CLAMP

main82715-02500

8271502510BRACKET,WIRING HARNESS CLAMP

main82715-02510

8271520C40BRACKET,WIRING HARNESS CLAMP

main82715-20C40

8271542710BRACKET,WIRING HARNESS CLAMP

main82715-42710

90105W0086

main90105-W0086

90105W0140

main90105-W0140

90119W0019

main90119-W0019

9043018008

main90430-18008

9155180835

main91551-80835

9165140620

main91651-40620

16 parts on this diagram · 8 diagrams in section
