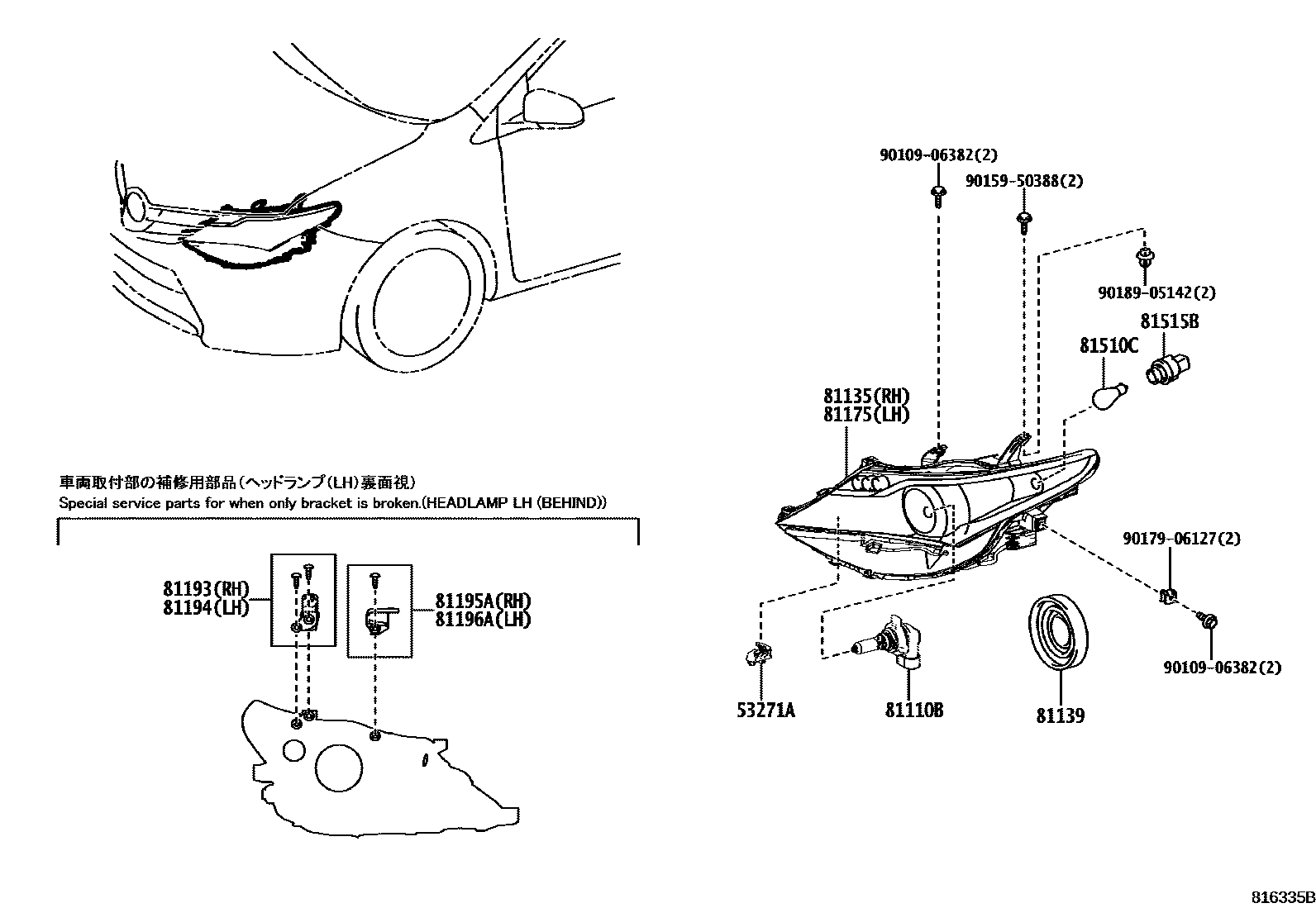

Toyota AURIS (UKP)166 — HEADLAMP
53271ABRACKET, HEADLAMP MOUNTING
81110BBULB(FOR HEADLAMP, NO.1)
81139COVER, HEADLAMP SOCKET
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
81515BSOCKET, FRONT TURN SIGNAL LAMP
9010906382
9015950388
9017906127
9018905142
15 parts on this diagram · 2 diagrams in section
HEADLAMP for Toyota AURIS (UKP)166
This section contains 18 genuine Toyota parts for the HEADLAMP system of the Toyota AURIS (UKP)166. Key components include: COVER, HEADLAMP, RH, COVER, HEADLAMP, LH, BRACKET, HEADLAMP MOUNTING, BULB(FOR HEADLAMP, NO.1), UNIT ASSY, HEADLAMP, RH.
