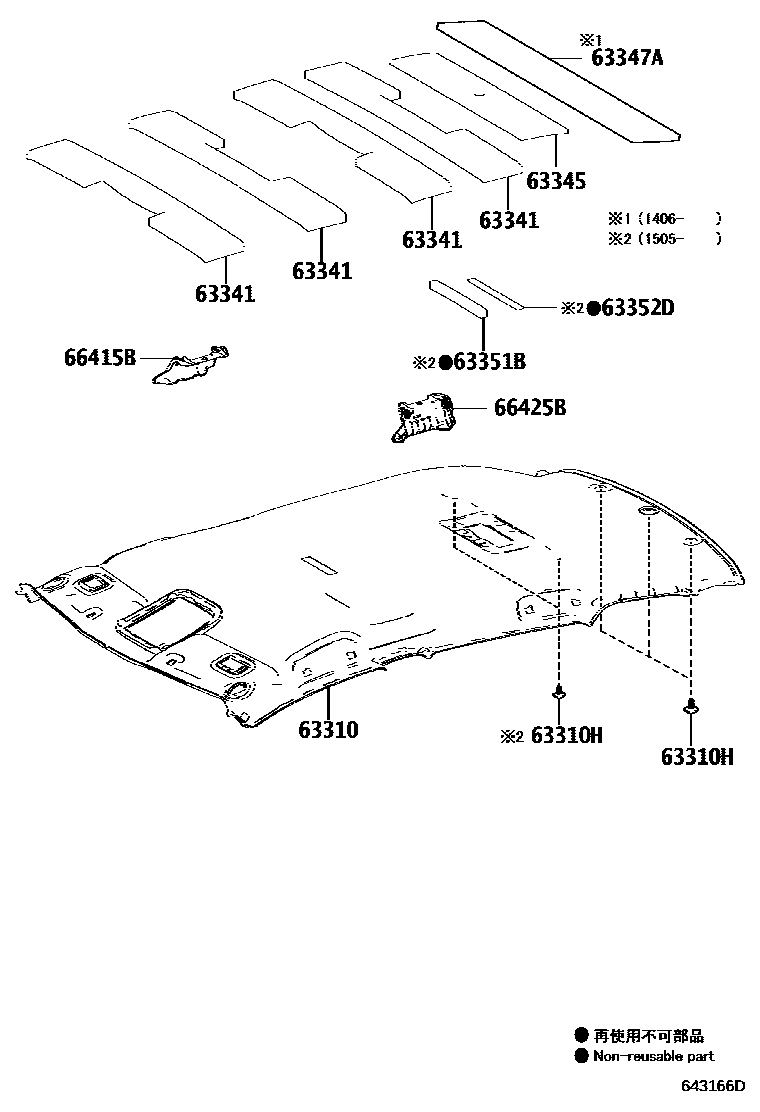

ROOF HEADLINING & SILENCER PAD

63310HEADLINING ASSY, ROOF

main63310-02D20-B3iZRE181201210-201407

GRAY,TRIM2#

main63310-02D21-B3iZRE181201408-201505

GRAY,TRIM2#

sub63310-02J30

main63310-02J40-B0iZRE181201505

GRAY,TRIM2#

63310HCLIP(FOR ROOF HEADLINING)

main90467-W0006-B0×3iZRE181201210-201505

LT.GRAY,TRIM2#

63341PAD, ROOF SILENCER, NO.1

main63341-02130×4iZRE181201210-201505

63345PAD, ROOF SILENCER, NO.5

main63345-02030iZRE181201210-201505

63347APAD, ROOF SILENCER, NO.7

main63347-02120iZRE181201406-201505

main63347-02121iZRE181201509

63351BPAD, ROOF HEADLINING

main63351-02140iZRE181201505

63352DPAD, ROOF HEADLINING, NO.2

main63352-02020iZRE181201505

66415BSPACER, SIDE RAIL, REAR NO.2 RH

main66415-02070iZRE181201210-201505

66425BSPACER, SIDE RAIL, REAR NO.2 LH

main66425-02070iZRE181201210-201505

9 parts on this diagram · 1 diagram in section
