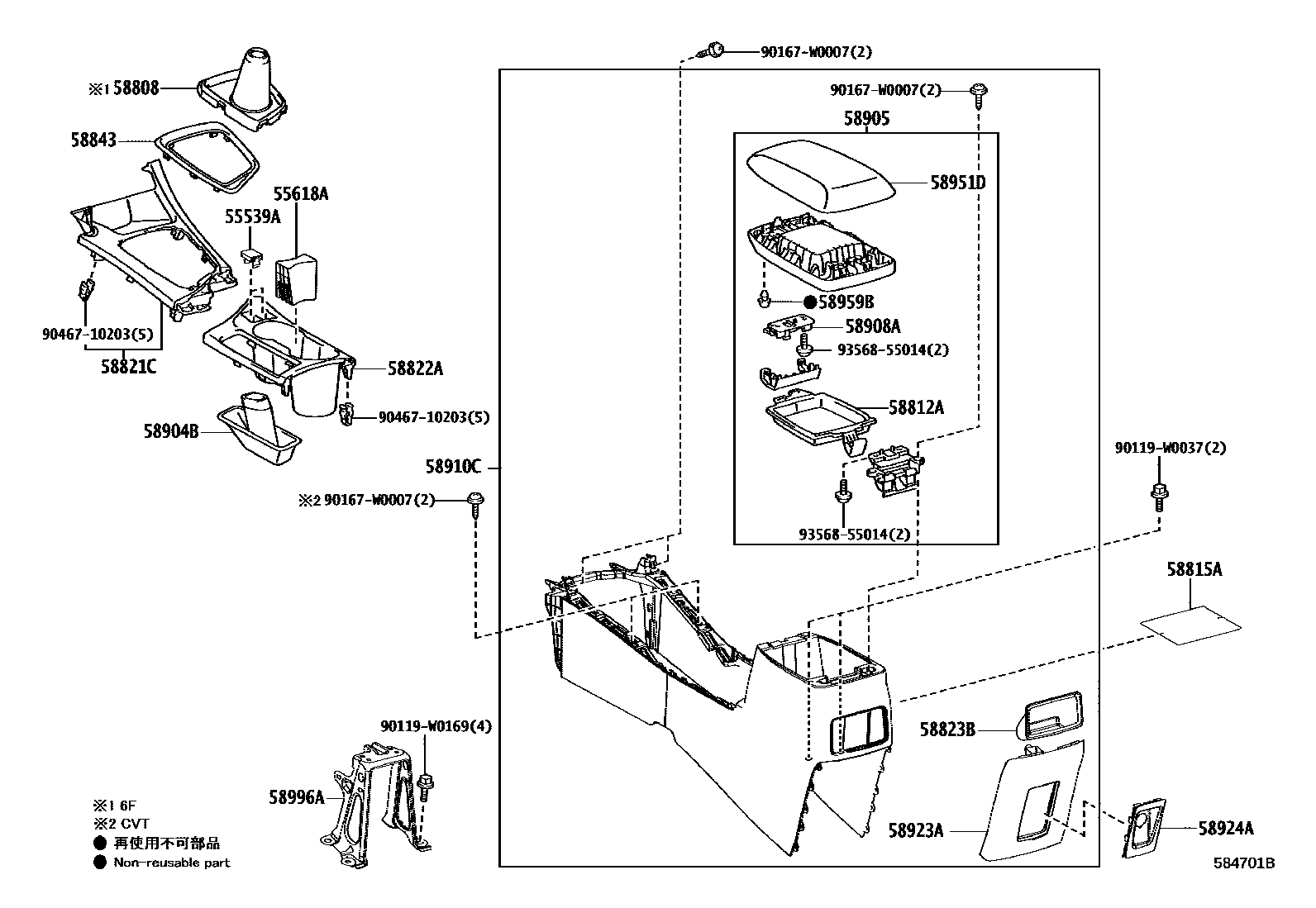

CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
55618AHOLDER, CONSOLE BOX CUP
BLACK,TRIM2#
EU BLACK,TRIM2#
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM2#
58812ABOX, CONSOLE, LOWER
58815ACARPET, CONSOLE BOX
58821CPANEL, CONSOLE, UPPER
EU BLACK,TRIM2#
BLACK,TRIM2#
58822APANEL, CONSOLE, UPPER REAR
BLACK,TRIM2#
EU BLACK,TRIM2#
58823BBOX, CONSOLE COMPARTMENT
58843BEZEL, SHIFTING HOLE
BLACK,TRIM2#
BLACK,TRIM2#
58904BCOVER SUB-ASSY, PARKING BRAKE HOLE
BLACK,TRIM2#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
BLACK,TRIM2#
EU BLACK/BLACK,TRIM2#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58910CBOX ASSY, CONSOLE, REAR
BLACK,TRIM2#
EU BLACK/BLACK,TRIM2#
58923APANEL, CONSOLE REAR END
58924APANEL, CONSOLE REAR END, NO.2
58951DDOOR, CONSOLE COMPARTMENT, OUTER
BLACK,TRIM2#
BLACK,TRIM2#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
90119W0037
main90119-W0037
90119W0169
main90119-W0169
90167W0007
main90167-W0007
9046710203
main90467-10203
9356855014
main93568-55014
23 parts on this diagram · 2 diagrams in section
