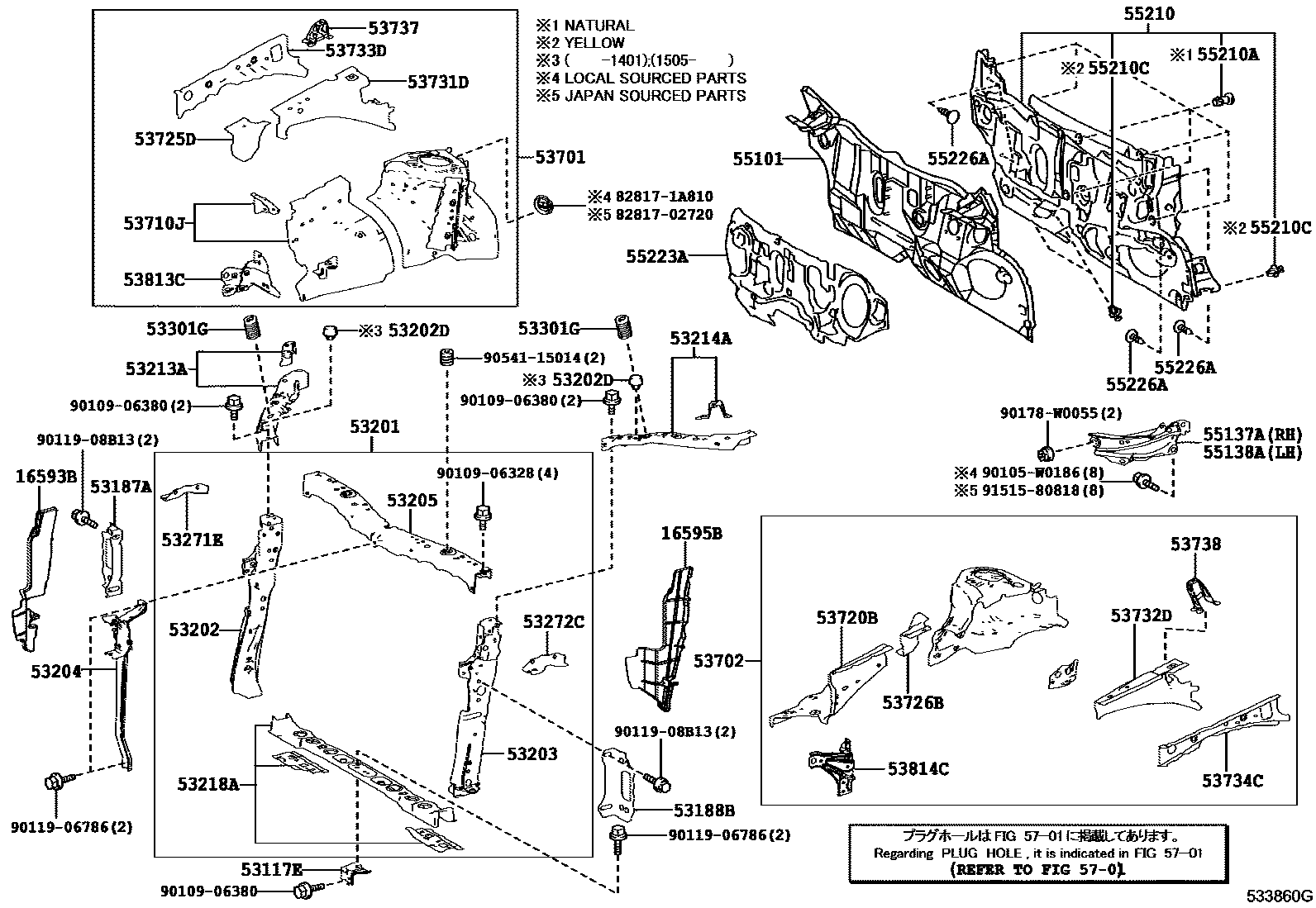

FRONT FENDER APRON & DASH PANEL
16593BGUIDE, RADIATOR AIR, NO.1 RH
16595BGUIDE, RADIATOR AIR, NO.1 LH
53117EBRACKET, RADIATOR GRILLE, LOWER
53187ASTAY, RADIATOR SUPPORT, RH
53188BSTAY, RADIATOR SUPPORT, LH
53201SUPPORT SUB-ASSY, RADIATOR
53202SUPPORT SUB-ASSY, RADIATOR, RH
53202DCUSHION, RADIATOR SUPPORT
53203SUPPORT SUB-ASSY, RADIATOR, LH
53204BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
sub53205-12310
53213ASUPPORT, RADIATOR, UPPER RH
sub53107-12030
53214ASUPPORT, RADIATOR, UPPER LH
sub53108-12040
53218ASUPPORT, RADIATOR, LOWER
53271EBRACKET, HEADLAMP MOUNTING, RH
53272CBRACKET, HEADLAMP MOUNTING, LH
53301GCUSHION, HOOD BUMPER
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53710JAPRON ASSY, FRONT FENDER, RH
53720BAPRON ASSY, FRONT FENDER, LH
53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH
53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
(L)
(J)
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
(L)
(J)
53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH
53813CEXTENSION, FRONT FENDER, RH
53814CEXTENSION, FRONT FENDER, LH
55101PANEL SUB-ASSY, DASH
55137ABRACE, DASH TO FRAME, RH
55138ABRACE, DASH TO FRAME, LH
55210INSULATOR ASSY, DASH PANEL
55210ACLIP
55210CCLIP
55223AINSULATOR, DASH PANEL, OUTER
55226ACLIP
5701
8281702720PROTECTOR, WIRING HARNESS, NO.1
main82817-02720
828171A810PROTECTOR, WIRING HARNESS, NO.1
main82817-1A810
90105W0186
main90105-W0186
9010906328
main90109-06328
9010906380
main90109-06380
9011906786
main90119-06786
9011908B13
main90119-08B13
90178W0055
main90178-W0055
9054115014
main90541-15014
9151580818
main91515-80818
50 parts on this diagram · 1 diagram in section
