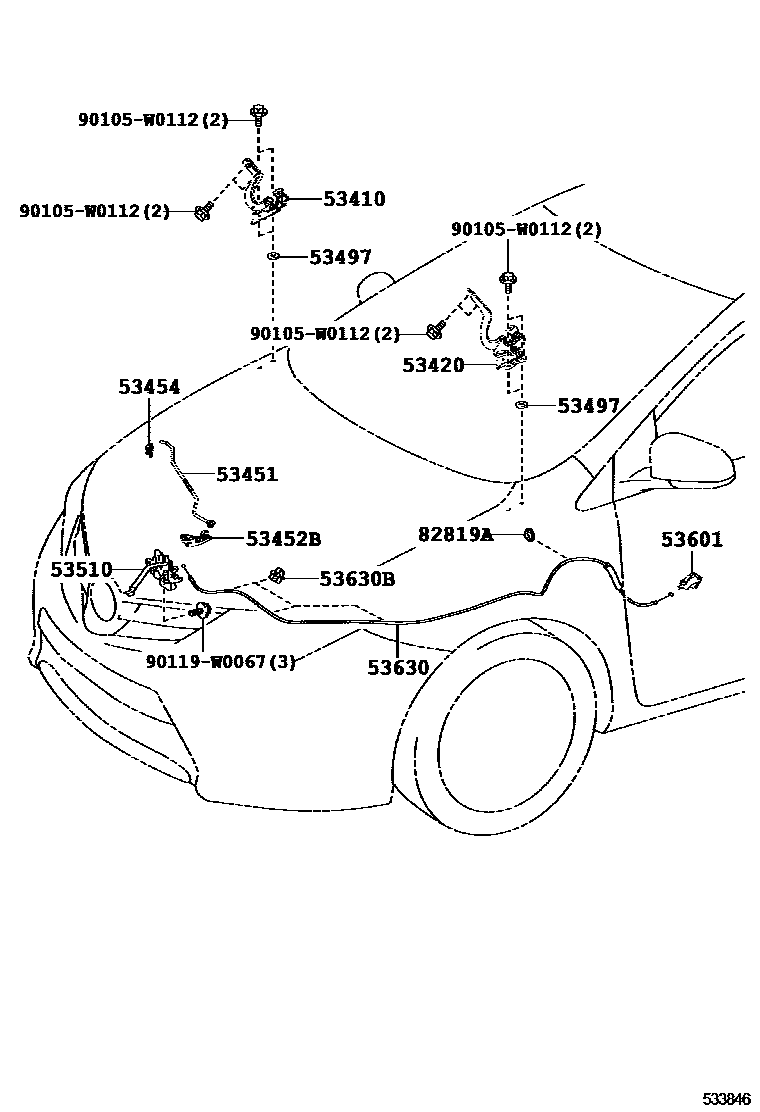

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-02210iZRE181201210-201505

53420HINGE ASSY, HOOD, LH

main53420-02210iZRE181201210-201505

53451ROD, HOOD SUPPORT

main53440-02160iZRE181201210-201505

53452BBRACKET, HOOD SUPPORT ROD

main53452-02120iZRE181201210-201505

53454CLIP, HOOD SUPPORT ROD

main53454-12030iZRE181201210-201505

53497PAD, HOOD HINGE, NO.1

main53497-05010iZRE181201210-201505

T=1.0

53510LOCK ASSY, HOOD

main53510-02480iZRE181201210-201505

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-05030-C0iZRE181201210-201505

BLACK,TRIM2#

sub53601-05030

main53601-05030-C1iZRE181201505

EU BLACK,TRIM2#

sub53601-05030

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-12690iZRE181201210-201505

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iZRE181201210-201505

82819AGROMMET, WIRE

main82817-02720iZRE181201210-201505

(L)

main82817-1A810iZRE181201210-201505

(J)

90105W0112

main90105-W0112

90119W0067

main90119-W0067

13 parts on this diagram · 1 diagram in section
