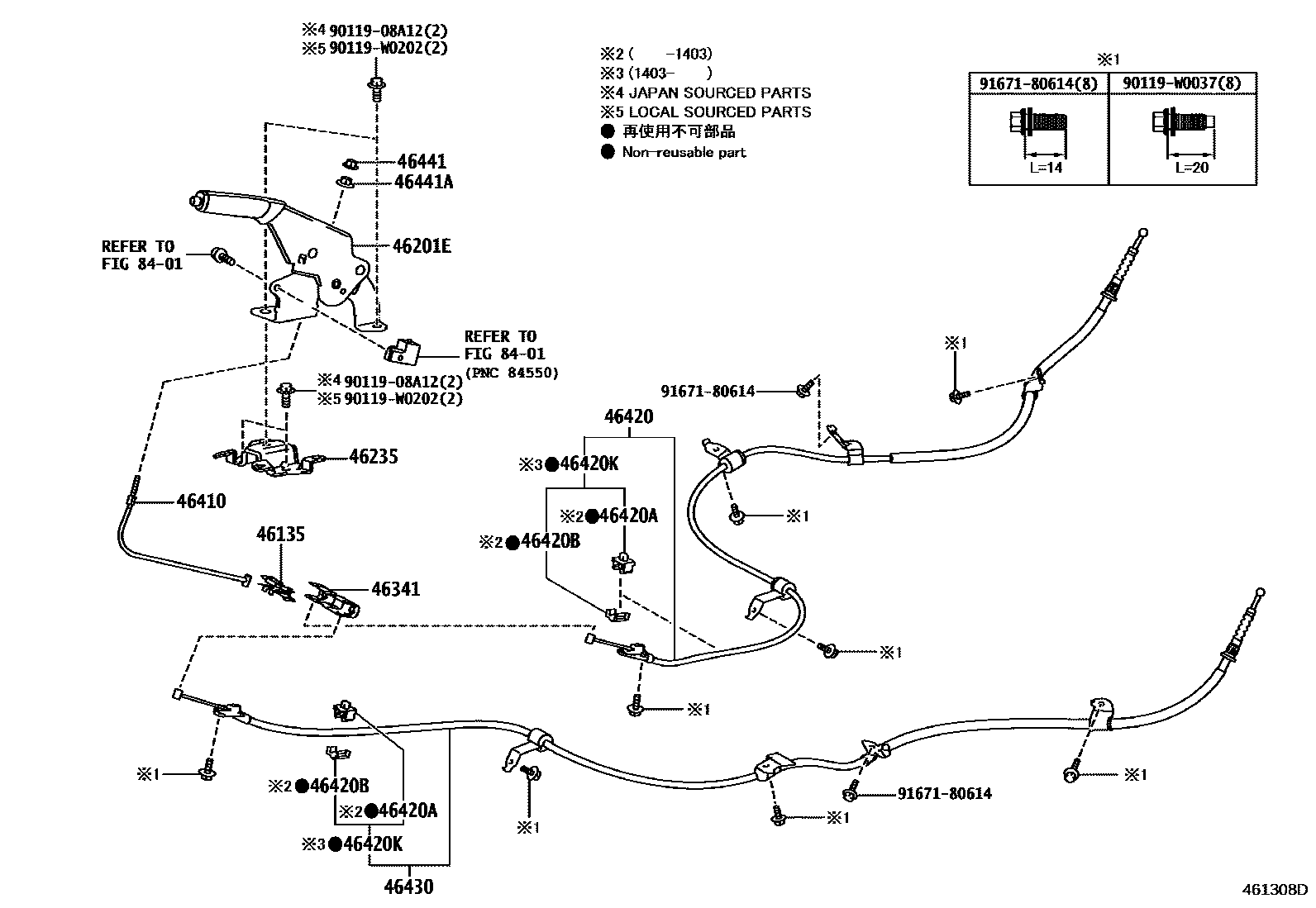

PARKING BRAKE & CABLE

46135STOPPER, PARKING BRAKE CABLE END

main46135-02040iZRE181201210-201505

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-02200-C0iZRE181201210-201505

BLACK,TRIM2#

main46201-02200-C1iZRE181201505

EU BLACK,TRIM2#

46235BRACKET, PARKING BRAKE LEVER SUPPORT

main46235-02030iZRE181201210-201505

46341EQUALIZER, PARKING BRAKE

main46341-02110iZRE181201210-201505

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-02140iZRE181201210-201505

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-02121iZRE181201210-201505

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46411-12030iZRE181201210-201403

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46411-12040iZRE181201210-201403

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46402-12030iZRE181201403-201505

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-02121iZRE181201210-201505

46441NUT, WIRE ADJUSTING, NO.1

main90179-06299iZRE181201210-201505

46441ANUT, WIRE ADJUSTING, NO.2

main46441-12010iZRE181201210-201505

8401

9011908A12

main90119-08A12

90119W0037

main90119-W0037

90119W0202

main90119-W0202

9167180614

main91671-80614

17 parts on this diagram · 1 diagram in section
