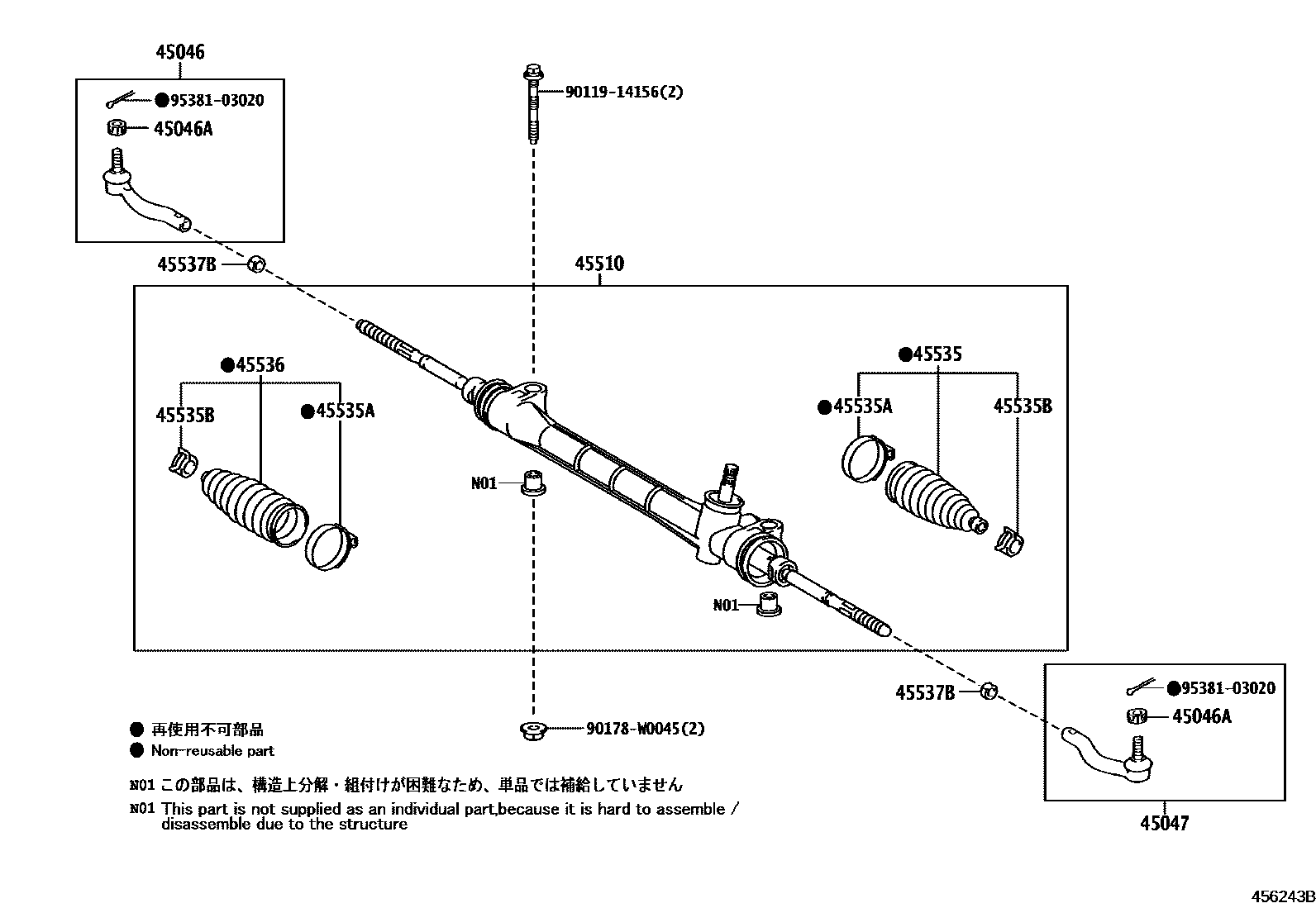

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-09570iZRE181201210-201505

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iZRE181201210-201505

45047END SUB-ASSY, TIE ROD, LH

main45047-09270iZRE181201210-201505

45510GEAR ASSY, STEERING

main45510-02320iZRE181201210-201505

45535BOOT, STEERING RACK, NO.1

main45535-09120iZRE181201210-201502

main45535-09440iZRE181201503-201505

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-05010iZRE181201505

main45538-47010iZRE181201210-201504

45535BCLIP(FOR STEERING RACK BOOT)

main45537-02010iZRE181201210-201505

45536BOOT, STEERING RACK, NO.2

main45535-09120iZRE181201210-201502

main45535-09440iZRE181201503-201505

45537BNUT, RACK END LOCK

main90179-15006iZRE181201210-201505

9011914156

main90119-14156

90178W0045

main90178-W0045

9538103020

main95381-03020

12 parts on this diagram · 1 diagram in section
