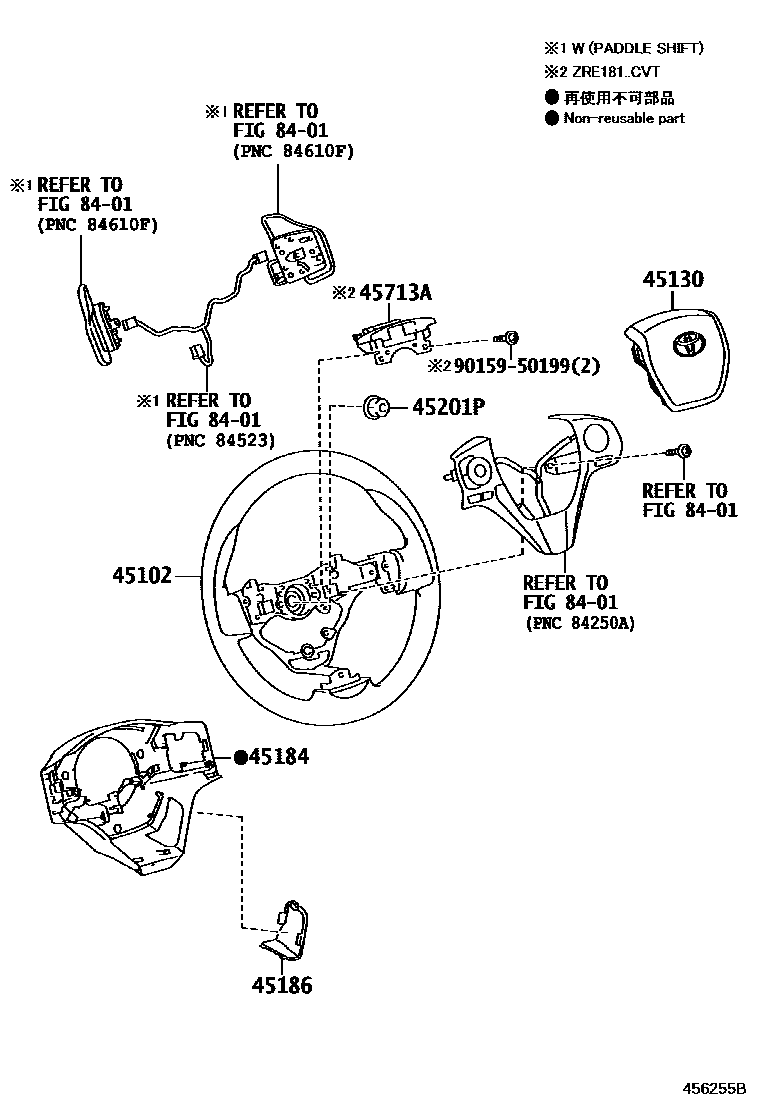

STEERING WHEEL

45102WHEEL SUB-ASSY, STEERING

main45102-02520-C0iZRE181201210-201505

BLACK,TRIM2#

sub45102-02520

main45102-02520-C1iZRE181201505

EU BLACK,TRIM2#

sub45102-02520

45130BUTTON ASSY, HORN

main45130-02450-C0iZRE181201210-201505

BLACK,TRIM2#

sub45130-02450

main45130-02450-C1iZRE181201505

EU BLACK,TRIM2#

sub45130-02450

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-02230-C0iZRE181201210-201505

BLACK,TRIM2#

sub45184-02230

main45184-02230-C1iZRE181201505

EU BLACK,TRIM2#

sub45184-02230

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-02200-C0iZRE181201210-201505

BLACK,TRIM2#

sub45186-02200

main45186-02200-C1iZRE181201505

EU BLACK,TRIM2#

sub45186-02200

45201PNUT, STEERING WHEEL SET

main90179-12071iZRE181201210-201505

45713ADAMPER, STEERING SHAKE

main45713-02070iZRE181..CVT201210-201505

8401

9015950199

main90159-50199

8 parts on this diagram · 1 diagram in section
