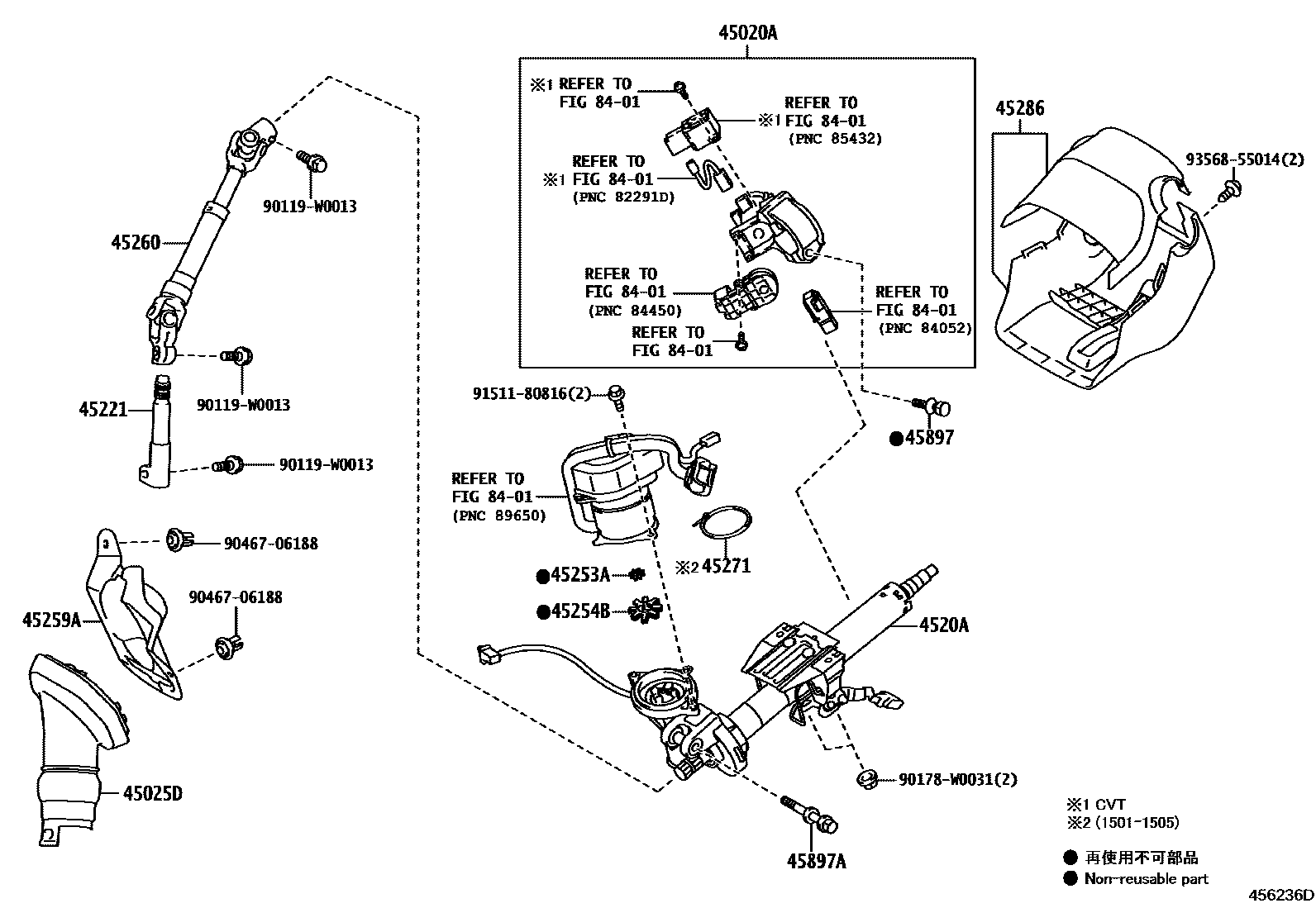

STEERING COLUMN & SHAFT

45020AACTUATOR ASSY, STEERING LOCK

main45020-02460iZRE181..CVT201210-201505

main45020-02480iZRE181..6F201210-201505

main45020-02650iZRE181..CVT201512-201807

main45020-02760iZRE181..6F201512-201807

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-02090iZRE181201210-201505

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-02110iZRE181201210-201403

main4520A-02111iZRE181201404-201412

main4520A-02112iZRE181201501-201505

main4520A-02113iZRE181201509

45221SHAFT, STEERING INTERMEDIATE

main45221-02100iZRE181201210-201505

45253ASPACER, ELECTRIC POWER STEERING MOTOR SHAFT

main45253-28130iZRE181201505

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iZRE181201210-201505

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-02080iZRE181201210-201505

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-02160iZRE181201210-201505

45271CLAMP, STEERING COLUMN, UPPER

main45271-52040iZRE181201501-201505

45286COVER, STEERING COLUMN

main45286-02942-C0iZRE181201210-201505

BLACK,TRIM2#

main45286-02942-C1iZRE181201505-201604

EU BLACK,TRIM2#

main45286-02950-C0iZRE181201604

EU BLACK,TRIM2#

45897BOLT, STEERING LOCK SET

main45897-12050iZRE181201210-201505

45897ABOLT, TILT STEERING PAWL SET

main45897-20020iZRE181201210-201212

main90119-10981iZRE181201301-201505

main90119-W0215iZRE181201610

(L)

8401

90119W0013

main90119-W0013

90178W0031

main90178-W0031

9046706188

main90467-06188

9151180816

main91511-80816

9356855014

main93568-55014

18 parts on this diagram · 1 diagram in section
