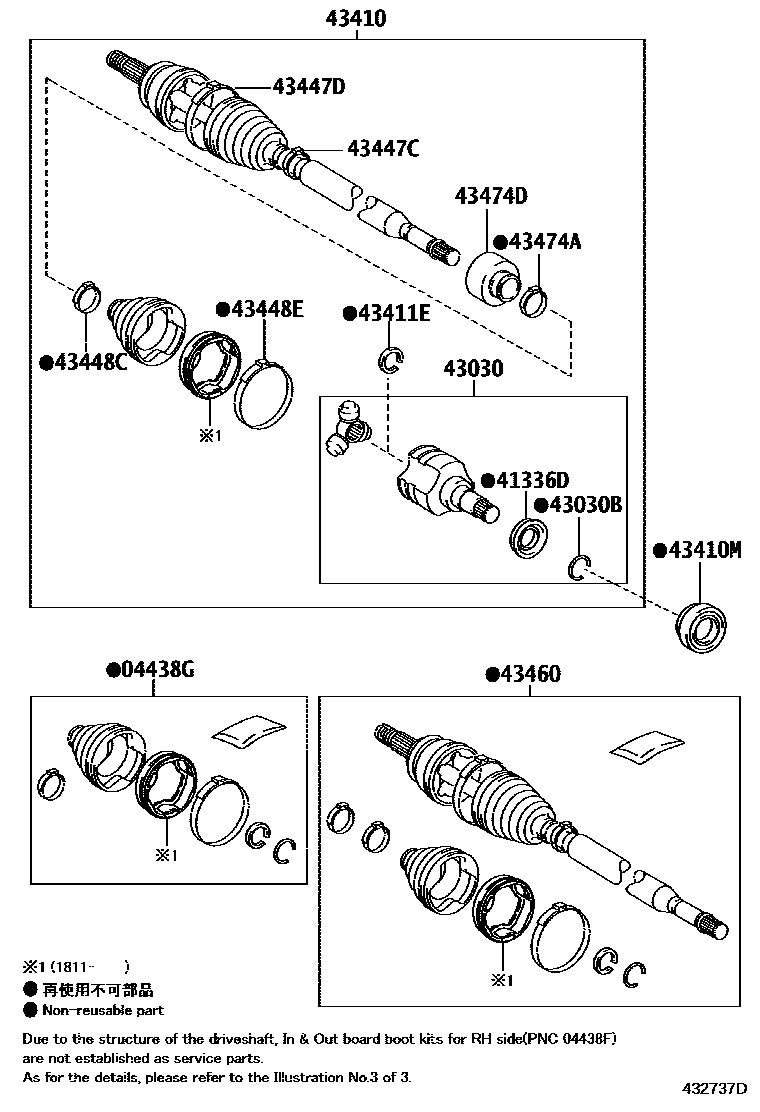

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-02430iZRE181201210-201505

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-05140iZRE181201210-201505

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-05150iZRE181201210-201505

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main90080-52055iZRE181201210-201505

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-02830iZRE181201210-201505

main43410-02B50iZRE181201505-201810

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35055iZRE181..CVT201210-201504

main90311-35065iZRE181..6F201210-201505

main90311-35069iZRE181..CVT201505-201808

main90311-35076iZRE181..CVT201808-201811

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-05080iZRE181201210-201505

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02110iZRE181201210-201505

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02100iZRE181201210-201505

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-05340iZRE181201210-201505

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-05320iZRE181201210-201505

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09V90iZRE181201210-201505

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-02230iZRE181201210-201505

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-02420iZRE181201210-201505

14 parts on this diagram · 3 diagrams in section
