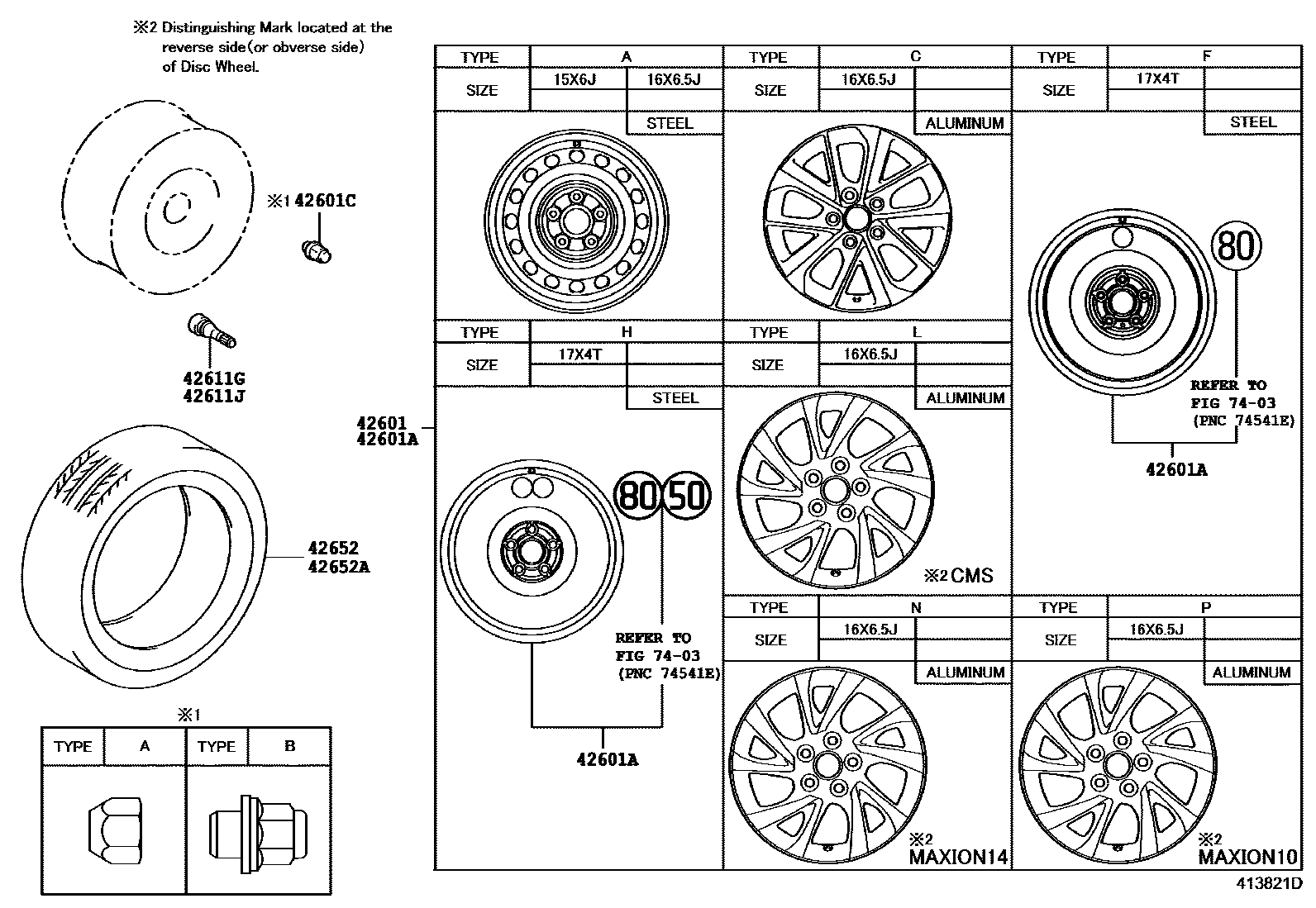

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-02B90iZRE181201210-201505

15X6J, #,TYPE A:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-02B90iZRE181201210-201505

15X6J, #,TYPE A:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01007iZRE181201210-201505

TYPE A:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iZRE181201210-201505

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iZRE181201210-201505

42652TIRE

main42652-02P40iZRE181201210-201401

195/65R15,GOODYEAR

main42652-02P41iZRE181201402-201708

195/65R15,GOODYEAR

main42652-02P42iZRE181201709

195/65R15,GOODYEAR

42652ATIRE (FOR SPARE)

main42652-02P40iZRE181201210-201401

195/65R15,GOODYEAR

main42652-02P41iZRE181201402-201708

195/65R15,GOODYEAR

main42652-02P42iZRE181201709

195/65R15,GOODYEAR

7403

8 parts on this diagram · 3 diagrams in section
