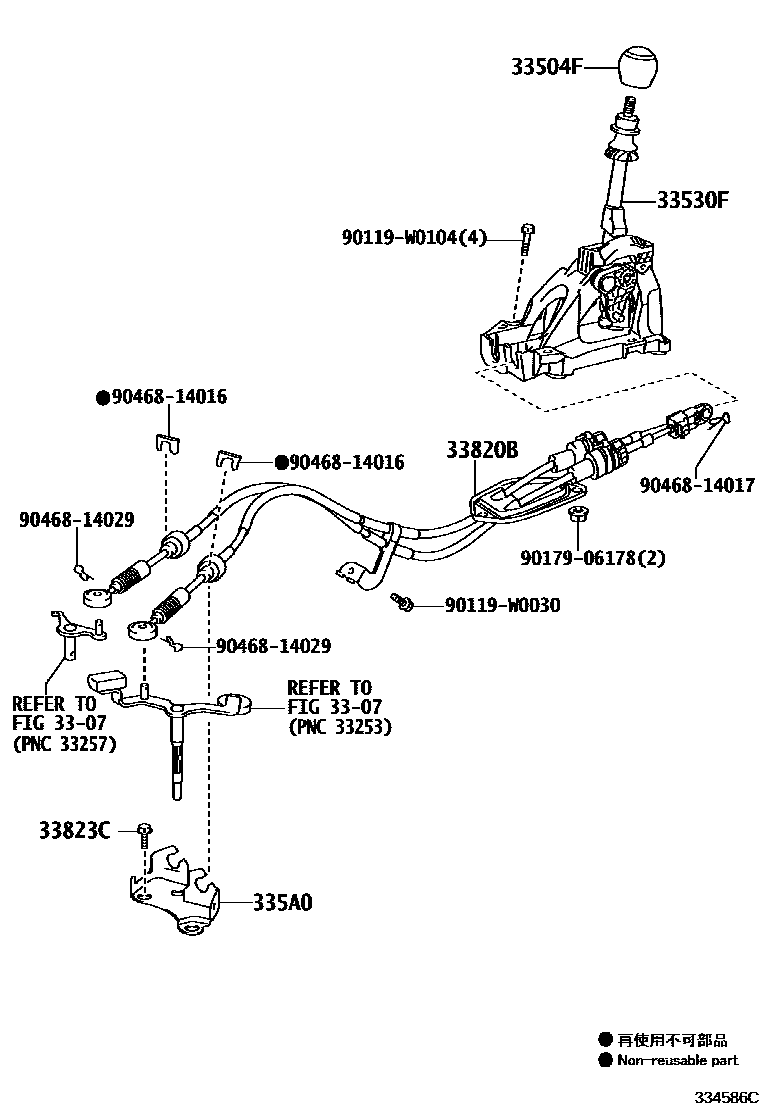

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

3307

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-02670-C0iZRE181..6F201505-201511

BLACK,TRIM2#

main33504-02670-C2iZRE181..6F201511

BLACK,TRIM2#

main33504-05081-C2iZRE181..6F201210-201505

BLACK & 21GY18,TRIM2#

main33504-12510-C1iZRE181..CVT201210-201505

BLACK,TRIM2#

main33542-12500-C0iZRE181..CVT201505

BLACK,TRIM2#

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-05110iZRE181..6F201210-201505

335A0BRACKET ASSY, CONTROL CABLE

main335A0-0D010iZRE181..6F201210-201505

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-05320iZRE181..6F201505-201802

sub33820-05321

main33820-05321iZRE181..6F201803

main33820-05360iZRE181..6F201210-201505

sub33820-05361

main33820-12G10iZRE181..CVT201210-201505

sub33820-12G11

main33820-12G11iZRE181..CVT201505

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-12190iZRE181..CVT201210-201505

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079iZRE181..CVT201210-201505

(J)

main90119-08C60iZRE181..6F201505

(J)

main90119-08C60iZRE181..6F201210-201505

main90119-W0016iZRE181..CVT201210-201505

(L)

sub90119-08026

main90119-W0016iZRE181..CVT201505

sub90119-08026

main90119-W0255iZRE181..6F201508

(L)

90119W0030

main90119-W0030

90119W0104

main90119-W0104

9017906178

main90179-06178

9046814016

main90468-14016

9046814017

main90468-14017

9046814029

main90468-14029

13 parts on this diagram · 3 diagrams in section
