CLUTCH & RELEASE FORK

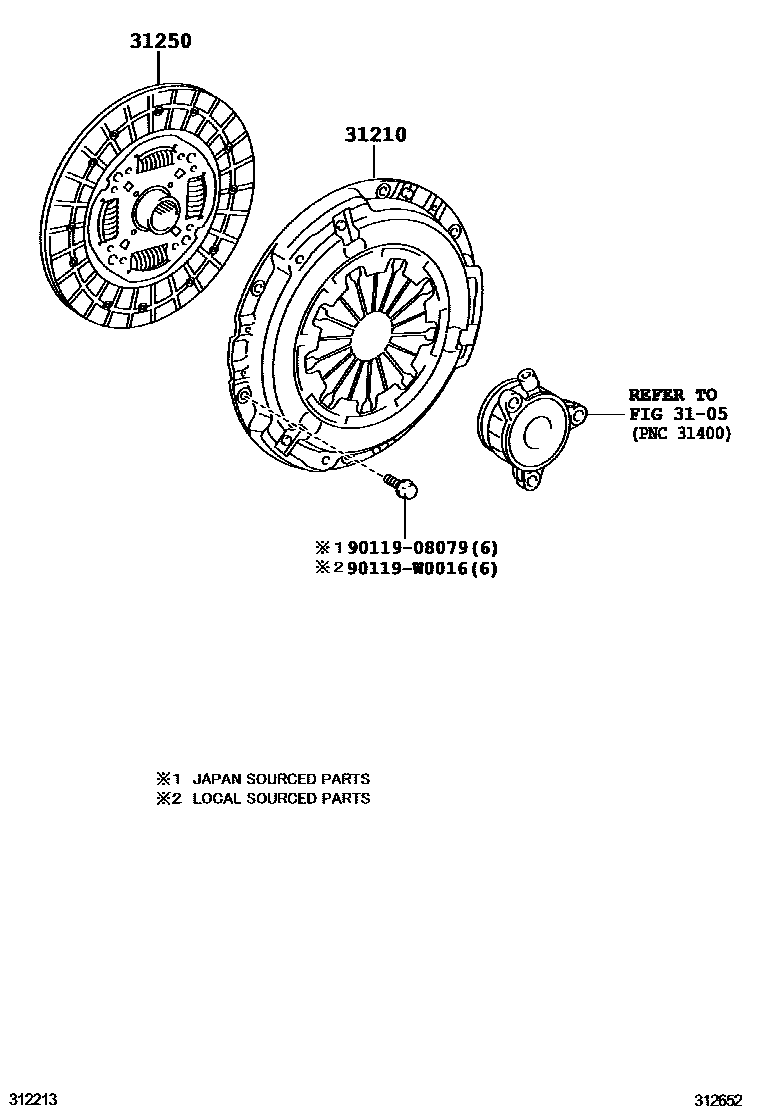

Parts diagram

3105

31210COVER ASSY, CLUTCH

main31210-05130i201210-201505

main31210-05131i201505-201705

main31210-05132i201706

31250DISC ASSY, CLUTCH

main31250-05140i201210-201505

main31250-05141i201505

9011908079

main90119-08079

90119W0016

main90119-W0016

5 parts on this diagram · 1 diagram in section
