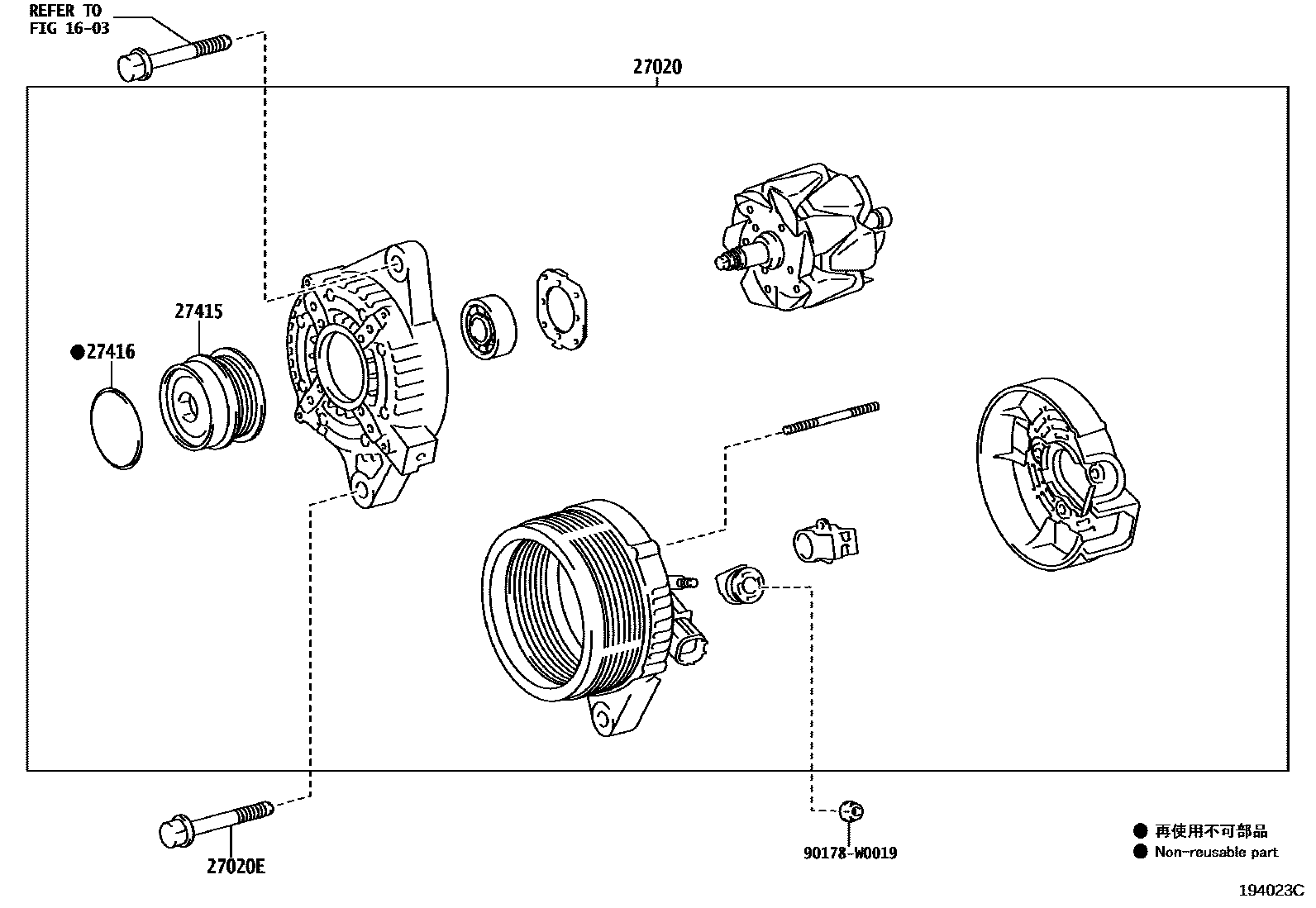

ALTERNATOR

0001 112V 90A 0002 112V 100A

1603

27020ALTERNATOR ASSY

main27060-0T220i1ZRFAE..ZRE181201210-201505

12V 90A

main27060-0T360i1ZRFAE..ZRE181201505

12V 100A

27020EBOLT(FOR ALTERNATOR)

main90105-10307i1ZRFAE..ZRE181201210-201505

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0T021i1ZRFAE..ZRE181201210-201307

main27415-0T022i1ZRFAE..ZRE181201308-201505

main27415-0T060i1ZRFAE..ZRE181201505

27416CAP, ALTERNATOR PULLEY

main27416-0W020i1ZRFAE..ZRE181201210-201307

main27416-0W050i1ZRFAE..ZRE181201308-201505

90178W0019

main90178-W0019

6 parts on this diagram · 2 diagrams in section
