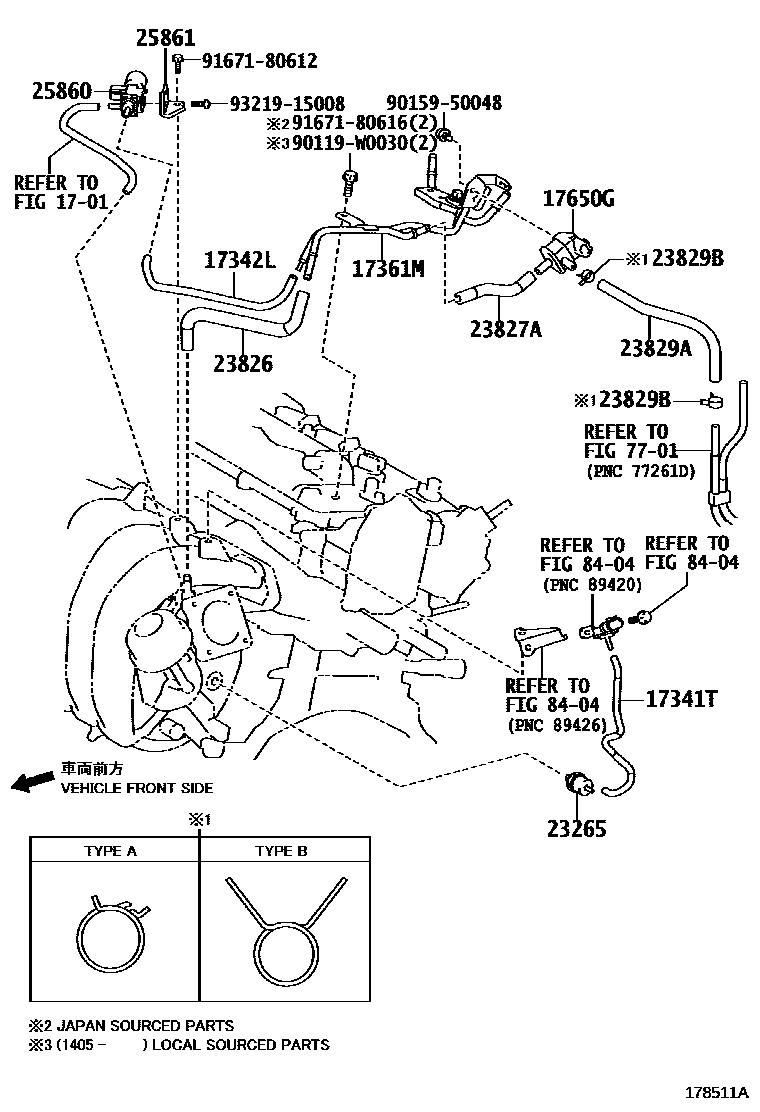

Toyota 166310 — VACUUM PIPING
1701MANIFOLD
17341THOSE, AIR, NO.1
17342LHOSE, AIR, NO.2
17361MTUBE, AIR
17650GVALVE, DUTY VACUUM SWITCHING
23265FILTER, GAS, NO.1
23826HOSE, FUEL VAPOR FEED, NO.1
23827AHOSE, FUEL VAPOR FEED, NO.2
23829AHOSE, FUEL VAPOR FEED
23829BCLIP(FOR FUEL VAPOR FEED HOSE)
25860VALVE ASSY, VACUUM SWITCHING, NO.1
25861BRACKET, VACUUM SWITCHING VALVE
7701FUEL TANK & TUBE
8404ELECTRONIC FUEL INJECTION SYSTEM
90119W0030
9015950048
9167180612
9167180616
9321915008
19 parts on this diagram · 1 diagram in section
VACUUM PIPING for Toyota 166310
This section contains 19 genuine Toyota parts for the VACUUM PIPING system of the Toyota 166310. Key components include: MANIFOLD, HOSE, AIR, NO.1, HOSE, AIR, NO.2, TUBE, AIR, VALVE, DUTY VACUUM SWITCHING.
