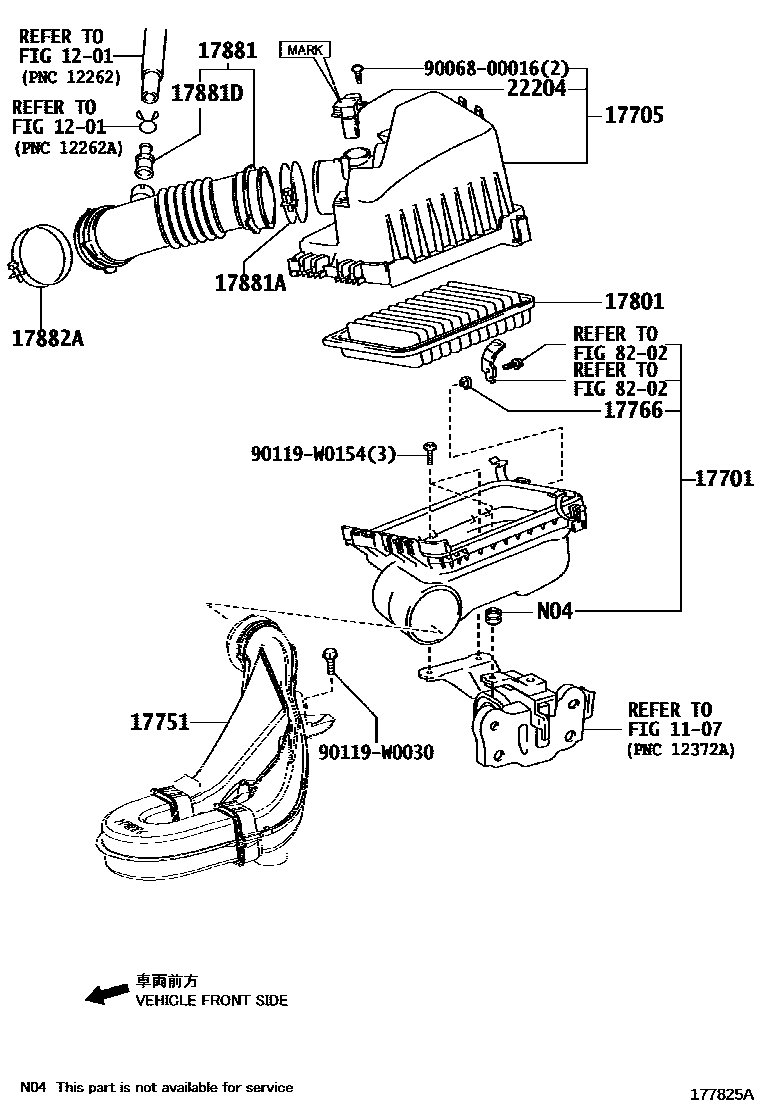

AIR CLEANER

1107

1201

17701CASE SUB-ASSY, AIR CLEANER

main17701-0T080i1ZRFAE..ZRE181201210-201505

17705CAP SUB-ASSY, AIR CLEANER

main17705-0T051i1ZRFAE..ZRE181201210-201505

17751INLET, AIR CLEANER, NO.1

main17751-0Y060i1ZRFAE..ZRE181201210-201505

17766STAY, AIR CLEANER, NO.2

main17706-21010i1ZRFAE..ZRE181201210-201505

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0D060i1ZRFAE..ZRE181201210-201505

17881HOSE, AIR CLEANER, NO.1

main17880-0T070i1ZRFAE..ZRE181201210-201505

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10750i1ZRFAE..ZRE181201210-201505

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main12229-21010i1ZRFAE..ZRE181201210-201505

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10780i1ZRFAE..ZRE181201210-201505

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0V010i1ZRFAE..ZRE181201210-201505

MARK 22204-0V010

sub22204-0V020

main22204-0V020i1ZRFAE..ZRE181201210-201505

MARK 22204-0V020

main22204-28010i1ZRFAE..ZRE181201210-201505

MARK 22204-28010

8202

9006800016

main90068-00016

90119W0030

main90119-W0030

90119W0154

main90119-W0154

16 parts on this diagram · 1 diagram in section
