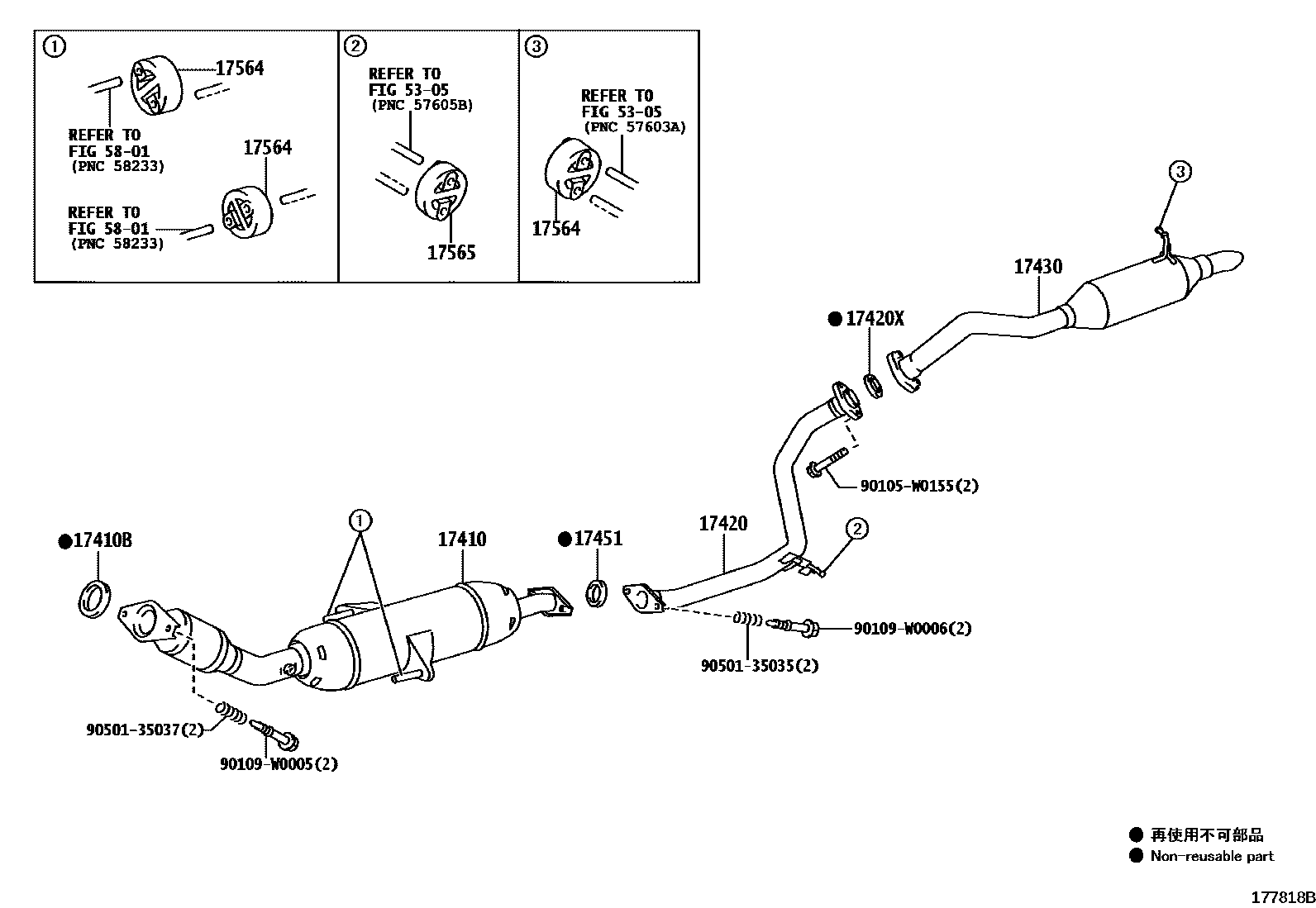

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-0T110i1ZRFAE..ZRE181201210-201505

*114=*387

main17410-0T500i1ZRFAE..ZRE181201505

*114=*409

17410BGASKET, EXHAUST PIPE

main17451-0R010i1ZRFAE..ZRE181201210-201505

17420PIPE ASSY, EXHAUST, CENTER

main17420-0D120i1ZRFAE..ZRE181201210-201505

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06089i1ZRFAE..ZRE181201210-201505

17430PIPE ASSY, EXHAUST, TAIL

main17430-0Y040i1ZRFAE..ZRE181201210-201505

17451GASKET, EXHAUST PIPE

main17451-0D112i1ZRFAE..ZRE181201210-201505

17564SUPPORT,EXHAUST PIPE, NO.4

main17565-0J031i1ZRFAE..ZRE181201210-201505

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0D100i1ZRFAE..ZRE181201210-201505

5305

5801

90105W0155

main90105-W0155

90109W0005

main90109-W0005

90109W0006

main90109-W0006

9050135035

main90501-35035

9050135037

main90501-35037

15 parts on this diagram · 1 diagram in section
