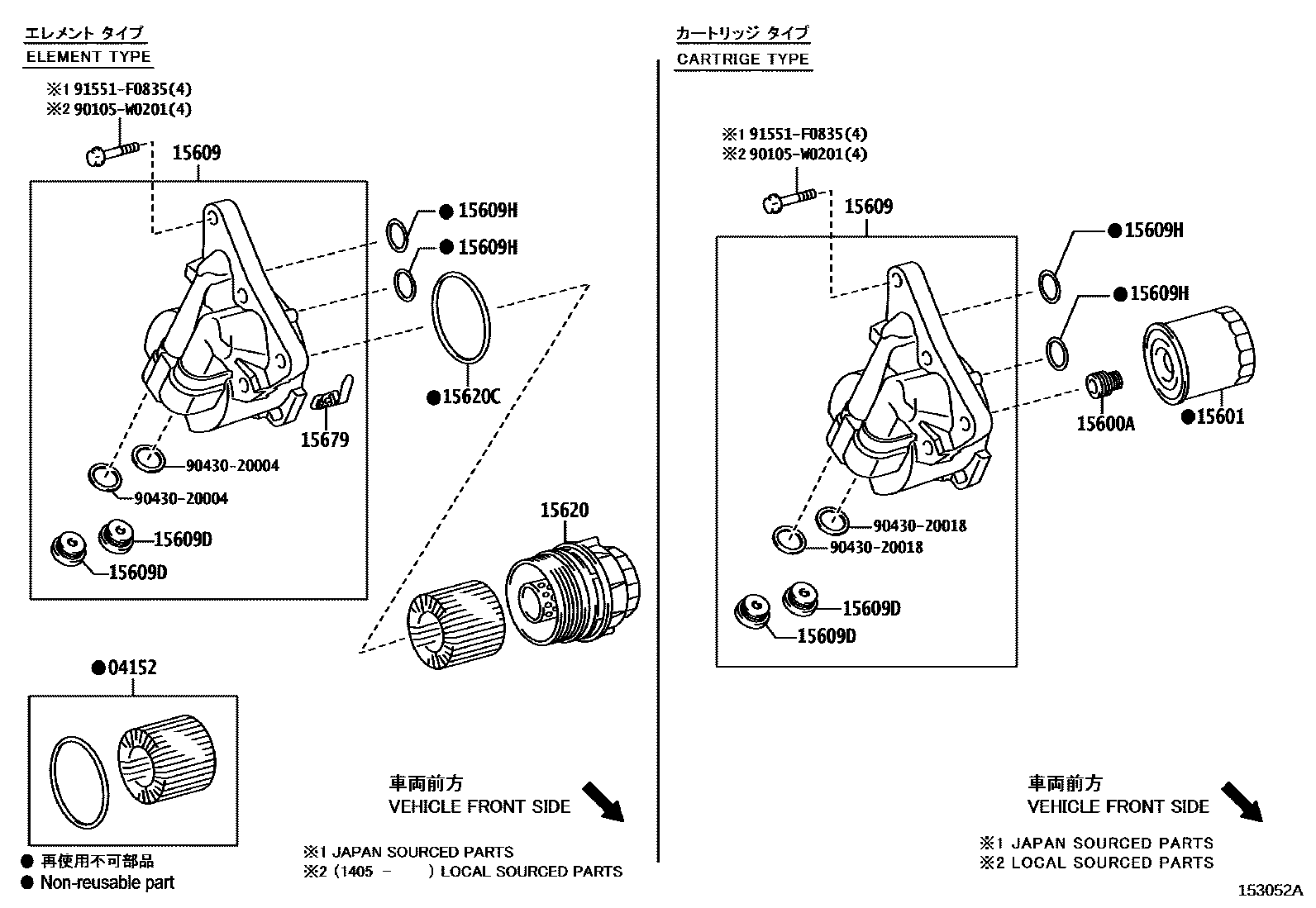

OIL FILTER

04152ELEMENT KIT, OIL FILTER

main04152-37010i1ZRFAE..ZRE181201210-201505

main04152-37010i1ZRFAE..ZRE181201505-201810

ELEMENT TYPE

15600AUNION(FOR OIL FILTER)

main90904-04006i1ZRFAE..ZRE181201807

CARTRIGE TYPE

15601FILTER SUB-ASSY, OIL

main90915-10003i1ZRFAE..ZRE181201807

(J)

sub90915-10009

main90915-CA003i1ZRFAE..ZRE181201807

(L),MADE IN EUROPE

main90915-TA001i1ZRFAE..ZRE181201807

(L),MADE IN TMMNA

15609BRACKET SUB-ASSY, OIL FILTER

main15609-0T030i1ZRFAE..ZRE181201505-201810

MADE IN EUROPE

sub15609-0T080

main15609-0T030i1ZRFAE..ZRE181201210-201505

(L)

sub15609-0T080

main15609-0T080i1ZRFAE..ZRE181201807-201811

(L),CARTRIGE TYPE

main15609-37040i1ZRFAE..ZRE181201210-201310

(J)

sub15609-37041

main15609-37041i1ZRFAE..ZRE181201310-201810

MADE IN JAPAN

main15609-37060i1ZRFAE..ZRE181201807-201811

(J),CARTRIGE TYPE

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-20002i1ZRFAE..ZRE181201210-201505

main90341-20002i1ZRFAE..ZRE181201505-201810

ELEMENT TYPE

main90341-20002i1ZRFAE..ZRE181201807-201811

CARTRIGE TYPE

15609HRING, O(FOR OIL FILTER BRACKET)

main96723-24020i1ZRFAE..ZRE181201210-201505

main96723-24020i1ZRFAE..ZRE181201505-201810

ELEMENT TYPE

main96723-24020i1ZRFAE..ZRE181201807-201811

CARTRIGE TYPE

15620CAP ASSY, OIL FILTER

main15620-37010i1ZRFAE..ZRE181201210-201505

main15620-37010i1ZRFAE..ZRE181201505-201810

ELEMENT TYPE

15620CGASKET(FOR OIL FILTER CAP)

main90301-69011i1ZRFAE..ZRE181201210-201505

main90301-69011i1ZRFAE..ZRE181201505-201810

ELEMENT TYPE

15679CLIP, OIL FILTER BRACKET

main15679-37010i1ZRFAE..ZRE181201210-201409

sub15679-37011

main15679-37011i1ZRFAE..ZRE181201409-201505

main15679-37011i1ZRFAE..ZRE181201505-201810

ELEMENT TYPE

90105W0201

main90105-W0201

9043020004

main90430-20004

9043020018

main90430-20018

91551F0835

main91551-F0835

13 parts on this diagram · 1 diagram in section
