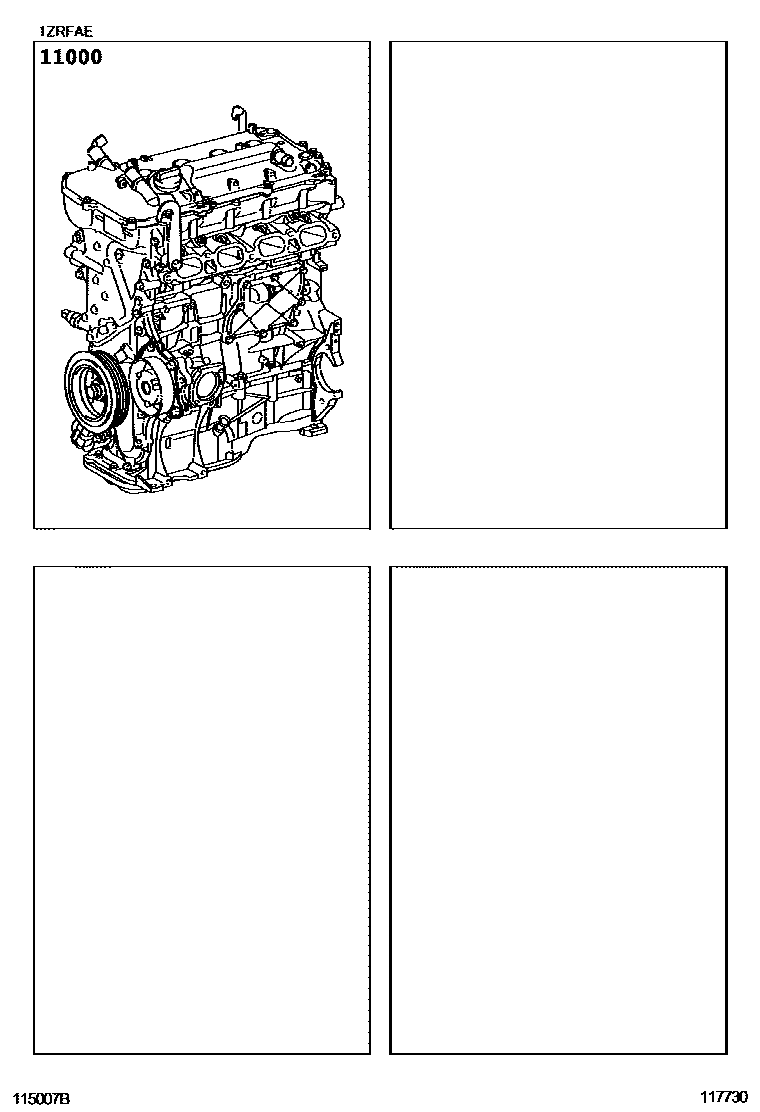

PARTIAL ENGINE ASSEMBLY

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-0T070i201210-201505
sub19000-0T072
main19000-0T481i201505

1 parts on this diagram · 1 diagram in section
