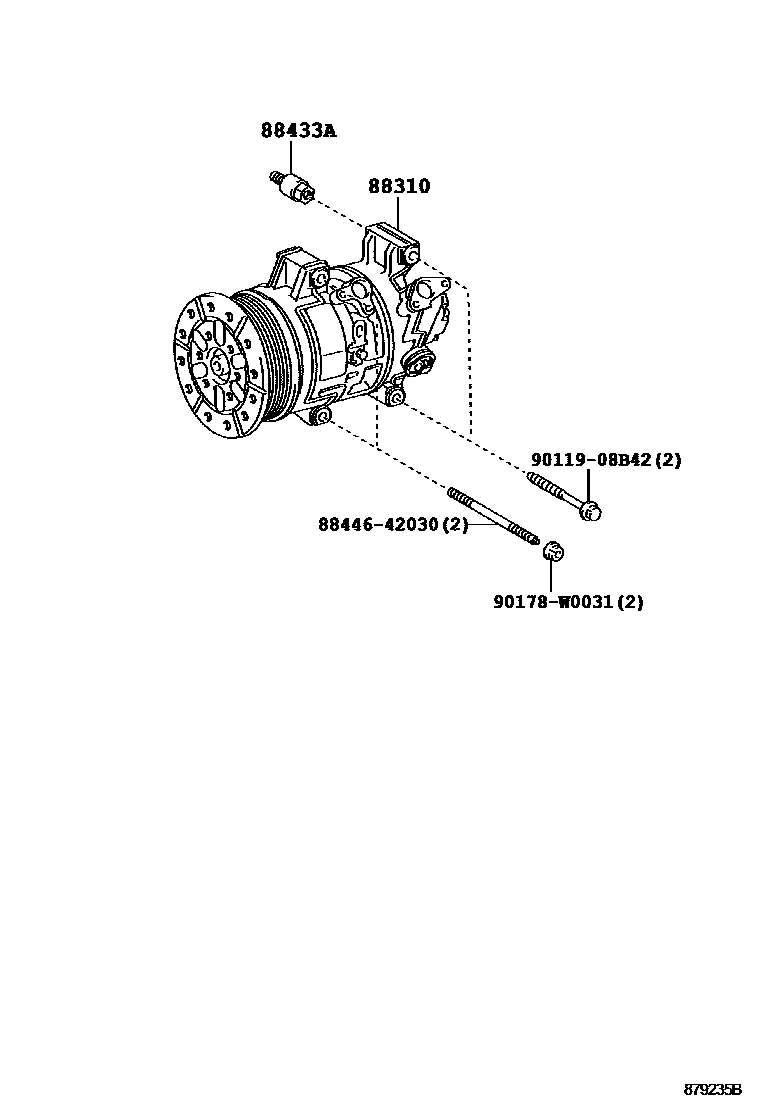

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88310COMPRESSOR ASSY, W/PULLEY

main88310-02370iZRE151..SOL,TERRA200706-201001

main88310-02400iADE150200706-201001

main88310-02540iZZE150200706-200811

main88310-0D320iNRE150200811-201001

88433ASTAY, COMPRESSOR

main88433-20040iADE150200706-201001

8844642030BOLT, IDLE PULLEY

main88446-42030

9011908B42

main90119-08B42

90178W0031

main90178-W0031

5 parts on this diagram · 4 diagrams in section
