HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1MANUAL HEATER CONTROL 0002 1AUTO HEATER CONTROL 0003 1AIR DUCT 0004 1SENSOR

5501

55901BASE SUB-ASSY, HEATER CONTROL

main55901-12140iZZE150200706-201001

main55901-12140iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

55902BCONTROL SUB-ASSY, HEATER

main55902-12070iADE150..RS200706-201001

main55902-12070iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

55903ACONTROL SUB-ASSY, HEATER, NO.3

main55903-12010iNRE150..TERRA;ZRE151..SOL,TERRA200912

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main55903-12010iZRE151..(6F,6FS)..(RS,RT);NRE150,ZRE152..RS,SOL,TERRA200706-201001

main55903-12020iADE150..RX200912

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main55903-12020iADE150..RS200706-201001

55906DCABLE SUB-ASSY, HEATER CONTROL, NO.2

main55906-0K010iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912-201210

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

sub55906-26060

main55906-0K010iZRE151..5F,5FS;ADE150,ZRE152,ZZE150..RS,RT200706-201001

sub55906-26060

55909CCABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-0K010iZRE151..5F,5FS;ADE150,ZRE152,ZZE150..RS,RT200706-201001

sub55909-26080

main55909-0K010iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912-201210

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

sub55909-26080

55910BBULB, HEATER CONTROL

main90010-01122iZZE150200706-201001

main90010-01122iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

8302

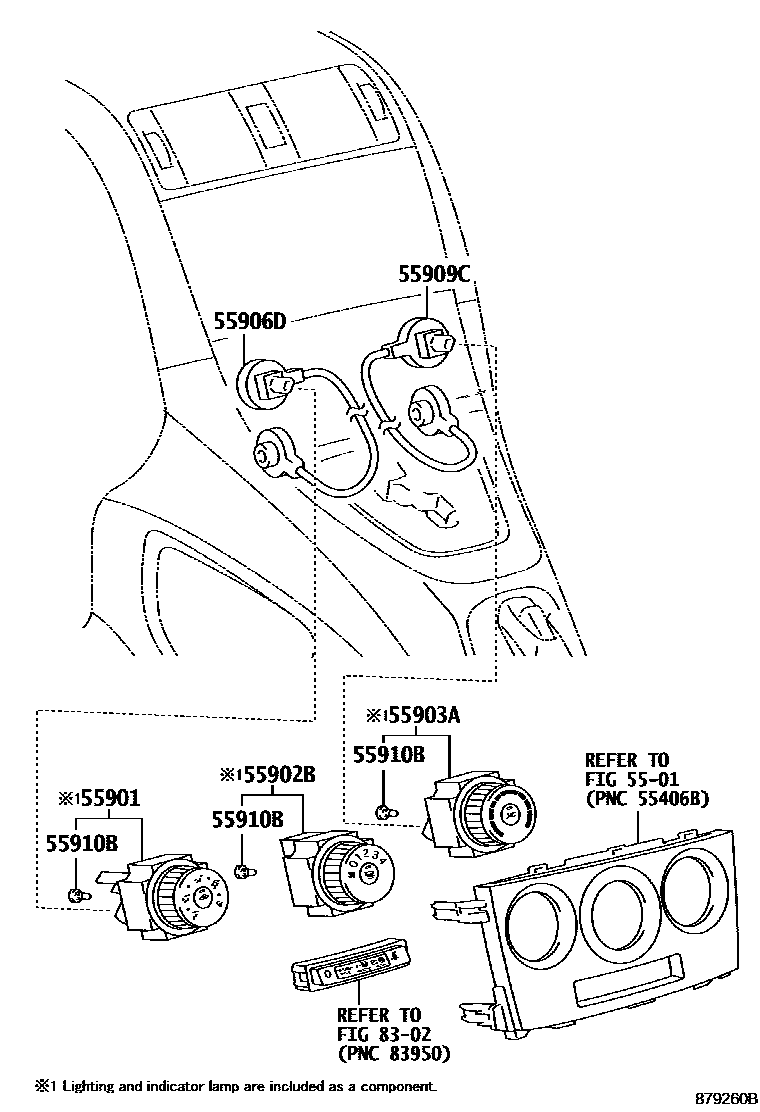

8 parts on this diagram · 4 diagrams in section
