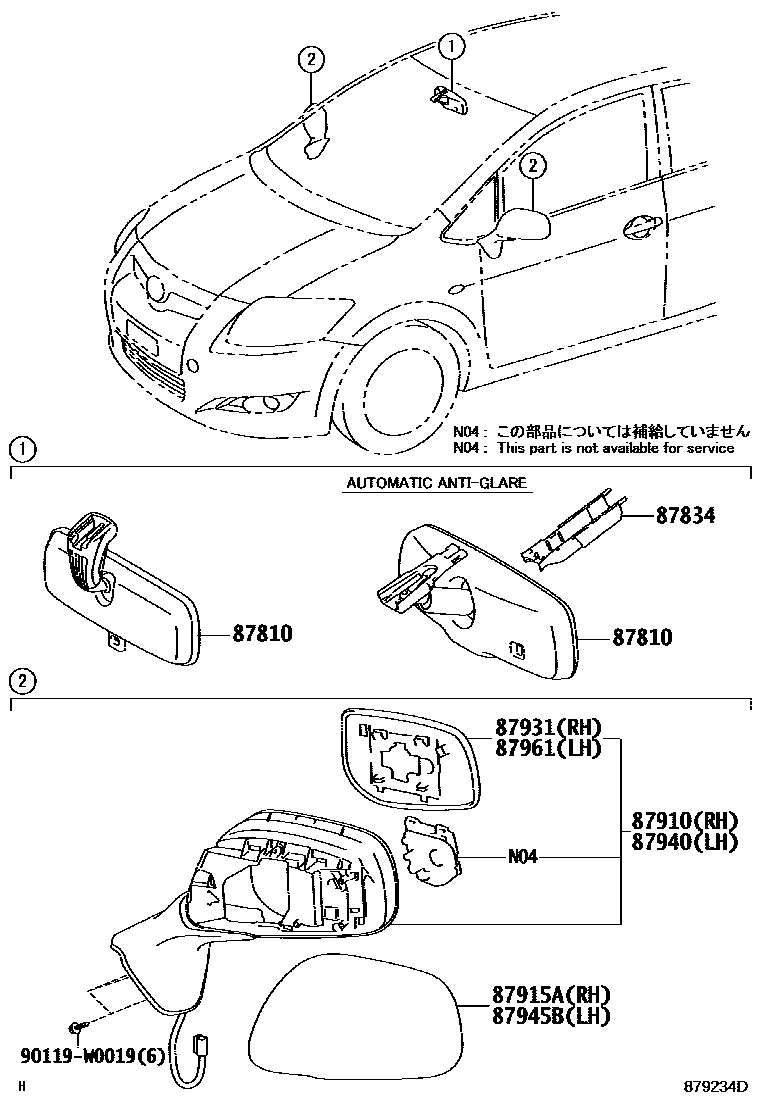

MIRROR
87810MIRROR ASSY, INNER REAR VIEW
INTERMITTENT WIPER-AUTO(RAIN SENSOR)
INTERMITTENT WIPER-AUTO(RAIN SENSOR)
INTERMITTENT WIPER-AUTO(RAIN SENSOR)
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
INTERMITTENT WIPER-AUTO(RAIN SENSOR)
INTERMITTENT WIPER-AUTO(RAIN SENSOR)
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
87915ACOVER, OUTER MIRROR, RH
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
87945BCOVER, OUTER MIRROR, LH
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
87961MIRROR OUTER, LH
90119W0019
main90119-W0019
9 parts on this diagram · 2 diagrams in section
