OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

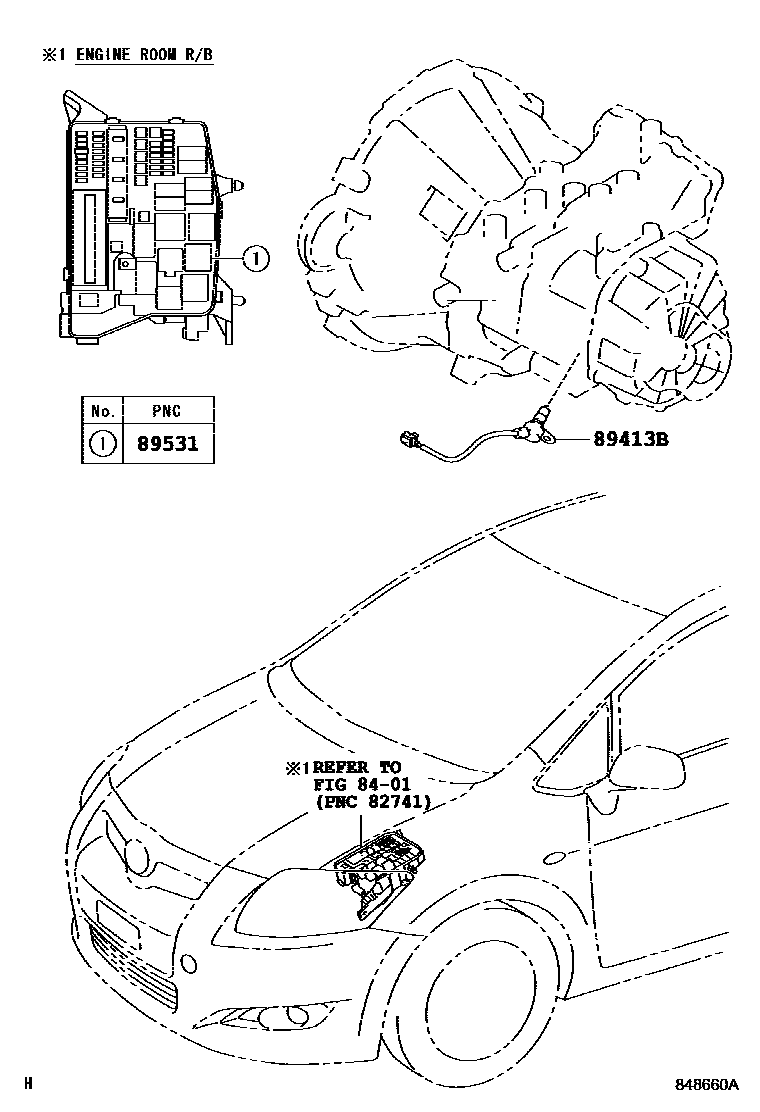

Parts diagram

8401

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-22010i200902-200912

main89413-64010i200706-200902

89531RELAY, TRANSMISSION CONTROL

main90080-87030i200706-200902

3 parts on this diagram · 2 diagrams in section
